BULLET TYPES

FMC/J: Full Metal Case/ Full metal Jacket
FMJTC: Full Metal Jacket Truncated Cone
HSP: Hollow Soft Point
LRB: Lead Round Ball
LRN: Lead Round Nose
LSWC: Lead Semi-Wadcutter
JHP: Jacketed Hollow Point
JSP: Jacketed Soft Point
LFP: Lead Flat Point
SJHP: Semi-Jacketed Hollow Point
SWHP: Semi-Wadcutter Hollow Point
Helmets

We offer high-quality Ballistic Helmets designed with the intention to provide an over garment solution for persons which operate in an environment where there is a threat from handguns (Ideal for police, security and military use).

Our plates are exclusively designed under NIJ standards in order to provide best ballistic and knife protection while keeping a low profile.

We manufacture the ballistic products under our brand name to approved and certified factories that have been determined to comply with NIJ Standard 0101.06 by the NIJ Compliance Testing Program and are listed on the NIJ Compliant Products List.

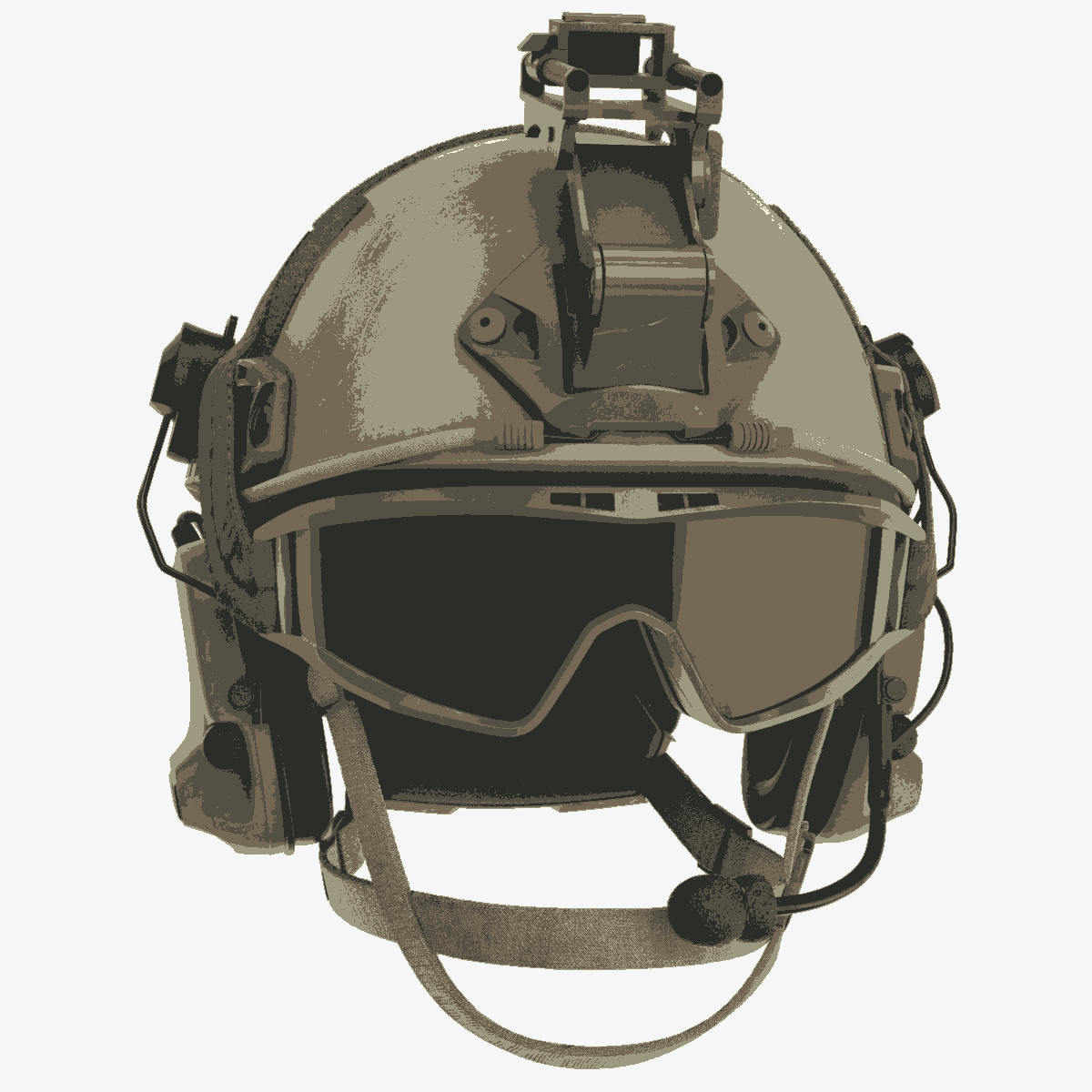

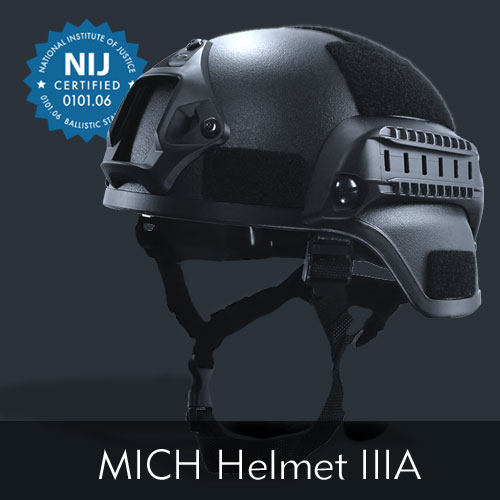

COMBAT HELMET (Level IIIA)

HELMET-MICH-FDK05-IIIA

OPS Core type COMBAT Fast Helmet The MICH is crafted out of an advanced version of Kevlar and offers protection from handgun shots also.

In addition, it dismisses the chinstrap, sweatband and cord suspension system of the PASGT and instead includes a four-point retention system and a pad system.

These systems not only make the MICH helmet more comfortable but they also offer better defense from impacts.

NIJ IIIA 0101.06 against 9mm & .44mag to meet ballistic performance at 1640 fps (500 m/s) minimum;
NIJ III against AK54 pistol 7.62*25mm lead core bullet at the 5m distance. minimum.
Components:

- Ballistic-resistant Kevlar shell
- Four-point adjustable chinstrap retention system
- Pad adjustable suspension system
- Weights: 1.35KGS+/-50g
- Material: Kelvar
Other Features / Performance:

- Minimum static load test of 150 lbs.
- Minimum dynamic load test of 25 fps.
- Impact mitigation, less than 150 gs force transmitted to the head at 10 fps.
- Compatible with the use of all major gas masks worn under the helmet.
- Fragmentation Resistance.
- Ballistic performance within the following temperature range: –40°F to 160°F.
- installation of audio communication system inside the ear.
- Rail system.
- Frontal shroud.

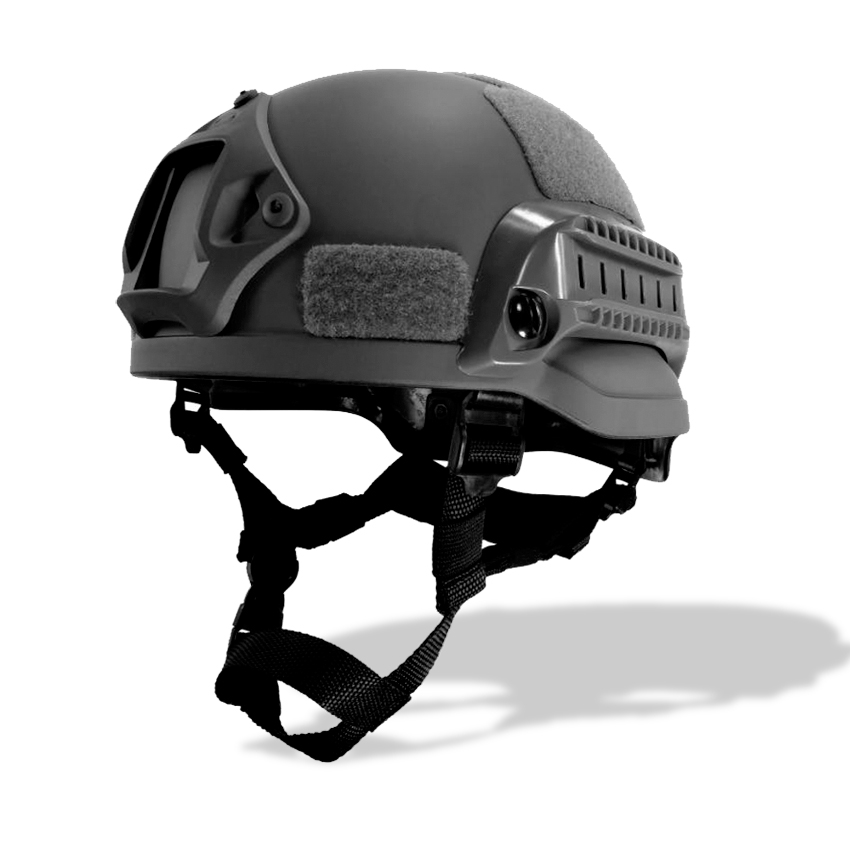

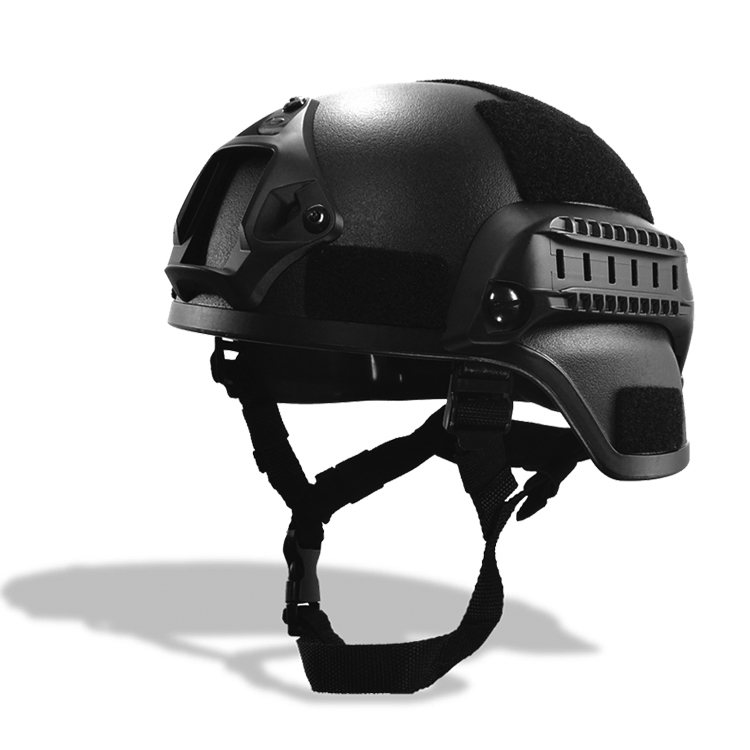

COMBAT MICH MID CUT HELMET (Level IIIA)



HELMET-MICH MID CUT-VGREAT-IIIA



OPS Core type MICH MID CUT Fast Helmet The MICH is crafted out of an advanced version of Kevlar and offers protection from handgun shots also.



In addition, it dismisses the chinstrap, sweatband and cord suspension system of the PASGT and instead includes a four-point retention system and a pad system.



These systems not only make the MICH helmet more comfortable but they also offer better defense from impacts.

MICH MID HELMET (NIJ 0101.06)

Ballistic Resistance: NIJ IIIA against 9mm and .44Magnum to meet ballistic performance at 1640 fps (500 m/s) minimum and against AK54 pistol 7.62*25mm lead core bullet at the 5m distance minimum

Ballistic-resistant Kevlar shell

Helmet Weight (Large Size): 1.30 Kg

Helmet with accessories (Large size): 1.50kg (Side rail, NVG shroud, 7pcs of pad suspension system)

Protection area in Large size: 0.104m2

Components:

- Durable and water/chemical/UV resistant
- Four-point adjustable chinstrap retention system
- Pad adjustable suspension system
- Front shroud
- Rail system
- Foam donut in the top / foam pads in the back / suspension net / sweatband / camouflage cover / elastic band / chain strap
- Minimum static load test of 150 lbs
- Minimum dynamic load test of 25 fps
- Impact mitigation, less than 150 gs force transmitted to the head at 10 fps
- Compatible with the use of all major gas masks worn under the helmet
- Fragmentation Resistance
- Ballistic performance within the following temperature range: –40F to 160F
- installation of audio communication system inside the ear

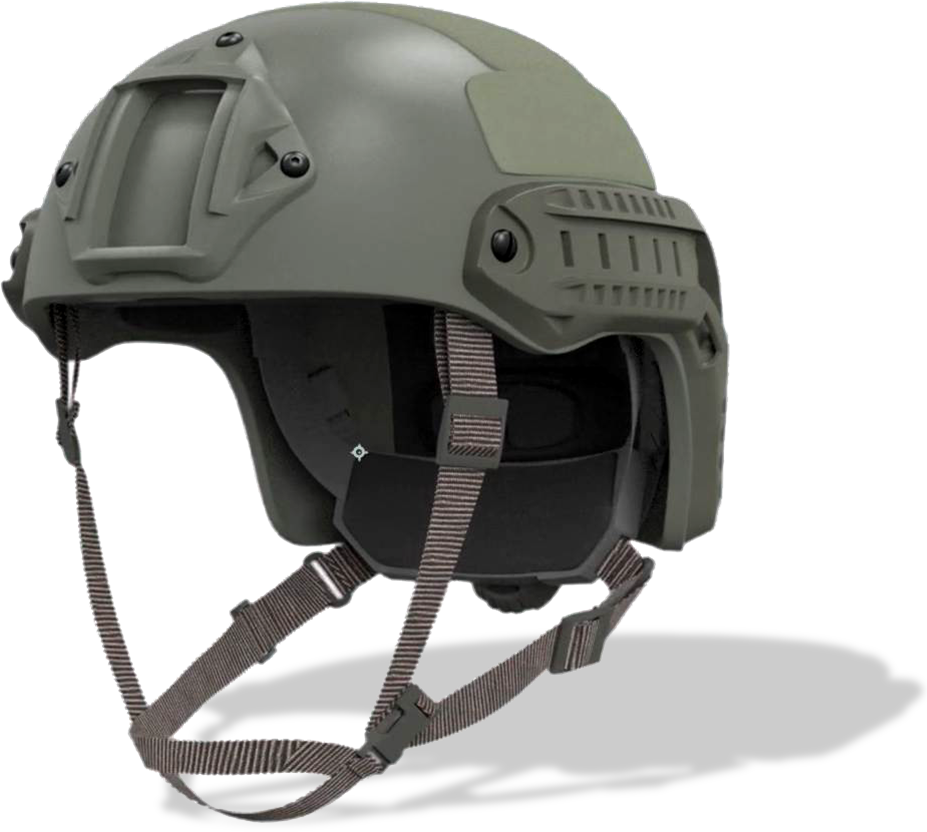

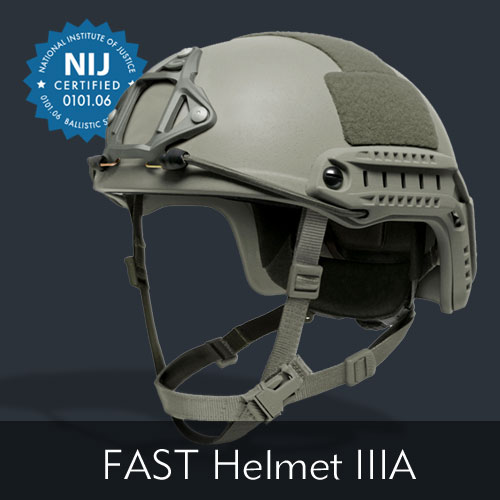

FAST HELMET HIGH CUT (Level IIIA)

HELMET-MICH MID CUT-VGREAT-IIIA

OPS Core type MICH MID CUT Fast Helmet The MICH is crafted out of an advanced version of Kevlar and offers protection from handgun shots also.

In addition, it dismisses the chinstrap, sweatband and cord suspension system of the PASGT and instead includes a four-point retention system and a pad system.

These systems not only make the MICH helmet more comfortable but they also offer better defense from impacts.
Ballistic Resistance: NIJ IIIA against 9mm and .44Magnum;
NIJ 0101.06
Material: Aramid
Weight: 1.4 Kg

Components:

- Four-point adjustable chinstrap retention system
- Pad adjustable suspension system
- Front shroud
- Rail system
- Foam donut in the top / foam pads in the back / suspension net / sweatband / camouflage cover / elastic band / chain strap
- Minimum static load test of 150 lbs
- Minimum dynamic load test of 25 fps
- Impact mitigation, less than 150 gs force transmitted to the head at 10 fps
- Compatible with the use of all major gas masks worn under the helmet
- Fragmentation Resistance
- Ballistic performance within the following temperature range: –40F to 160F
- installation of audio communication system inside the ear
View Brochure
View Brochure
View Brochure

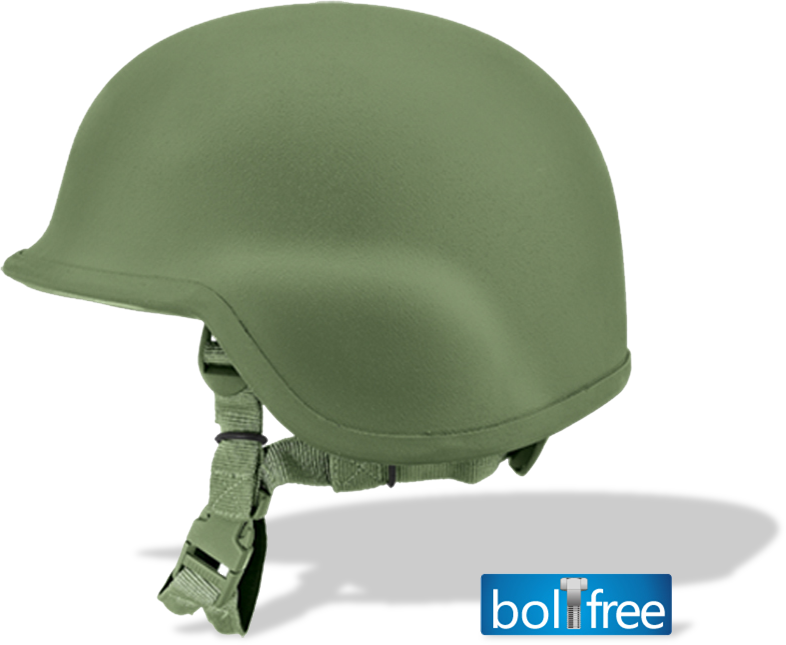

HELMET PASGT BOLT FREE (Level IIIA)

  - Ballistic Resistance: NIJ IIIA against 9mm and .44Magnum to meet ballistic performance at 1640 fps (500 m/s) minimum.

- Basic material: made from ARAMID fabric

- Protection area: 0.14 m2
- Net weight: <1.50 Kg

- Accessories: Foam donut in the top / foam pads in the back / suspension net / sweatband / camouflage cover / elastic band / chain strap - Suspension system offers a secure, comfortable, adjustable, steady and firm fit

- Color: Black, Green, Coyote tan, Navy Blue or any other on client decision

- Optional: NIJ IIIA Bulletproof Visor
View Brochure

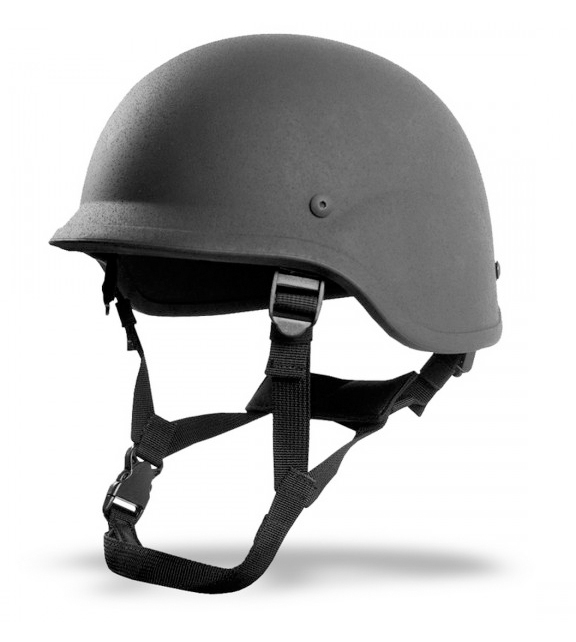

PASGT HELMET KEVLAR (Level IIIA)

HELMET-PASGT-IA-ARK


PASGT ballistic helmet is a high performance, multi-layer, lightweight combat helmet.

This ballistic helmet has been tested and proven to achieve a rating of Level IIIA by the USA National Institute of Justice (NIJ 101.06)

Specifications

- Basic material: KEVLAR

- Ballistic Resistance: NIJ IIIA against 9mm & .44mag to meet ballistic performance at 1640 fps (500 m/s) minimum)

- Protection area: 0.14 m2

- Net weight: <1.5 Kg

Accessories (a) Foam donut in the top (b) Foam pads in the back (c) Suspension net (d) Sweatband (e) Camouflage cover (f) Elastic band (g) Chain strap (h) Suspension system that offers a secure, comfortable, adjustable, steady and firm fit
View Brochure

BALLISTIC CHART



LEVEL IIA

01 - .22 Magnum 40 gr. JHP (1209 FPS / 369 MPS)

02 - .32 ACP 60 gr. Silvertip JHP (936 FPS / 285 MPS)

03 - .380 ACP 95 gr. FMC (902 FPS / 275 MPS)

04 - .38 Special 125 gr. Nyclad SWHP (1009 FPS / 308 MPS)

05 - .38 Special +P 110 gr. JHP (1049 FPS / 320 MPS)

06 - .38 Special +P 140 gr. JHP (869 FPS / 265 MPS)

07 - 9mm 124 gr. FMC (1173 FPS / 358 MPS)

08 - 9mm 125 gr. JSP (1121 FPS / 342 MPS)

09 - 9mm 147 gr. Black Talon (1010 FPS / 308 MPS)

10 - 9mm 147 gr. Golden Saber (1083 FPS / 330 MPS)

11 - 9mm 147 gr. Hydra Shok (1011 FPS / 308 MPS)

12 - .357 Magnum 158 gr. JSP (1308 FPS / 399 MPS)

13 - .357 Magnum 110 gr. JHP (1292 FPS / 394 MPS)

14 - .357 Magnum 125 gr. JHP (1335 FPS / 407 MPS)

15 - .40 Caliber 180 gr. FMJTC (992 FPS / 302 MPS)

16 - .40 Caliber 170 gr. FMJTC (1095 FPS / 334 MPS)

17 - 10mm 155 gr. FMJTC (1024 FPS / 312 MPS)

18 - 10mm 170 gr. JHP (1137 FPS / 347 MPS)

19 - .41 Magnum 210 gr. LSWC (1141 FPS / 348 MPS)

20 - .44 Magnum 240 gr. LFP (1017 FPS / 310 MPS)

21 - .45 Long Colt 250 gr. LRN (778 FPS / 237 MPS)

22 - .45 ACP 230 gr. FMJ (826 FPS / 252 MPS)

23 - 12 ga. 00 Buck (9 pellet) (1063 FPS / 324 MPS)

LEVEL II

24 - 9mm 124 gr. FMJ (1215 FPS / 370 MPS)

25 - 9mm 115 gr. Silvertip JHP (1252 FPS / 382 MPS)

26 - 9mm 124 gr. Starfire JHP (1174 FPS / 358 MPS)

27 - .357 Magnum 158 gr. JSP (1453 FPS / 443 MPS)

28 - .357 Magnum 145 gr. Silvertip JHP (1371 FPS / 418 MPS)

29 - .357 Magnum 125 gr. JHP (1428 FPS / 435 MPS)

30 - 10 mm 175 gr. Silvertip JHP (1246 FPS / 380 MPS)

31 - .41 Magnum 210 gr. JSP (1322 FPS / 403 MPS)

32 - .44 Magnum 240 gr. SJHP (1270 FPS / 387 MPS)

LEVEL IIA

33 - 9mm 124 gr. FMJ (1440 FPS / 439 MPS)

34 - 9mm 115 gr. FMJ Israeli (1499 FPS / 457 MPS)

35 - 9mm 123 gr. FMJ Geco (1372 FPS / 418 MPS)

36 - 9mm 124 gr. FMJ Cavim (1259 FPS / 384 MPS)

37 - .44 Magnum 240 gr. LSWC (1448 FPS / 441 MPS)

38 - .44 Magnum 240 gr. HSP (1320 FPS / 402 MPS)

39 - 12 ga. 1 oz. Rifled Slug (1290 FPS / 393 MPS)

40 - 12 ga. 1 oz. Rifle Slug (1254 FPS / 382 MPS)
