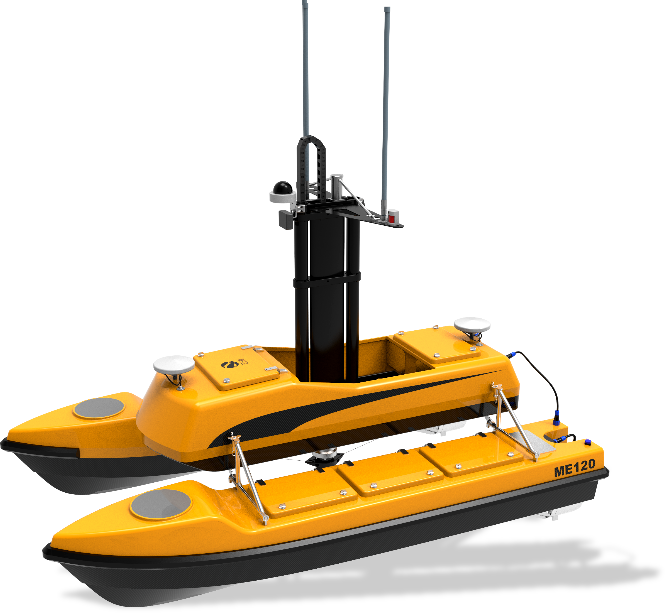

ME120 Hydrographic Unmanned Surface Vehicle (USV)

Specifications

Dimensions 2.5*1.4*0.7 m

Weight 150 kg

Battery weight 60 kg

Payload 45 kg

Material Carbon fiber

Communication Range 2 km (RC) / 5 km (Auto)

Max.Speed 5 m/s

Survey Speed 2 m/s

Endurance at Survey Speed 8 hours @ 2 m/s / 2 hours @ 5 m/s

Video Monitoring Yes

Collision Avoidance Yes

Multi Missions Yes

Automatic Transducer Lifter Yes

Autonomous survey boat ME120 is a medium sized platform designed for hydrographic survey in harbor and costal area.

With catamaran design and flexible payload for instruments, ME120 is developed to provide surveyors and Service Company with multi-mission work in harbors or inland waters.

Navigation control and real-time data acquisition are easily operated at base station computer.

ME120 is also a universal deployable platform to execute other mission like water quality monitoring and harbor surveillance.

- Mission planning and autonomous survey

- 60Kg/25Kg(ME120/ME70) payload for flexible instrument options

- Applied in river or costal area

- Customizable for various equipment (Muti-parameter probe, CCTV

camera, ADCP, Side Scan sonar etc.)

Request for Quotation

About / Contact

Hydrographic Unmanned Surface Vehicle ME120

Convertible catamaran USV platform for hydrographic survey

Intelligent collision avoidance

The ME120 USV comes with ultrasonic sensors that can detect obstacles 40 meters ahead to avoid collision when in auto-pilot mode.

Operators can observe the water environment through a real-time video feed to better avoid obstacles when operating in manual mode.

Replaceable equipment cabin

The payload cabin of the ME120 USV is replaceable, user can freely change and install different instruments according to mission requirements.

Quick assembly and easy transportation

The ME120 utilizes a detachable catamaran design, making it easy for van transportation and for two people to assemble and disassemble.

Dedicated for small-size multibeam sonars

The ME120 USV is dedicated for multibeam snoars, side scan sonars and other survey instruments of relatively smaller size.

Singlebeam echo sounder

Multibeam echo sounder

ADCP

3D LiDAR scanner

Side scan sonar

Forward-looking sonar

Water quality sonde

Camera

Millimiter Wave Radar

GNS Antenna

Equipment Cabin

Mountable stents

Battery Cabin

Propulsion Cabin

GNS Antenna

Flipper

Sailing Light

Automatic mission planning

User can pre-program the survey mission with the base station on the bank.

The USV and instruments can conduct surveys autonomously and send back real-time data.

User can also drive the USV manually by a remote controller.
