RADAR (Military / Surveillance)



We provide a large range of strategically added value services in all respective fields within the scope of our business while we are offering comprehensive security consulting services, from assessments and master planning to policy development, business continuity strategies and audits as well as security and maritime security special products in order to well and with safety secure your people and your property.



We supply a wide range of surveillance and control (border control/anti smuggling/crowd control) systems etc.

MINI SAR
Coastal & Maritime
Surveillance Solution
Smart Border Surveillance Solutions
Infrared Panoramic E.O.S

Small, lightweight, portable

The size is only161x205.5x290.5mm
Wireless transmission, instant connection
Wireless transmission distance up to 50m
Mobile power supply
8 hours of outdoor mobile patrol
Tablet control
Equipped with mobile tablet, support touch operation
SOKOL Passive optical radar

The passive optical radar Sokol is mounted on the mobile reconnaissance and control station, and performs a circular automatic review of a given sector of the hemisphere, processes the information received from the television modules, recognizes & identifies the detected objects, calculates & constructs the air situation & subsequently transfers it to the central command post & subordinate combat vehicles.

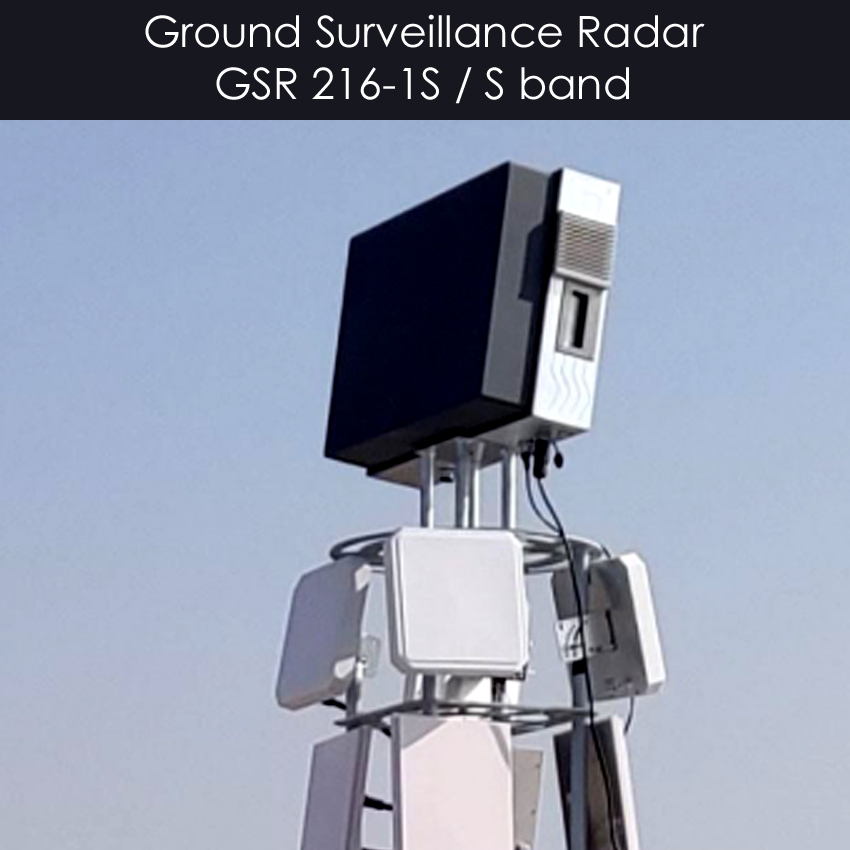

Ground Surveillance Radar
GSR 216-1S / S band

GSR216-1S, working in S-band, adopting the digital technology of active phased array system, through the modular, fine design, the integrated use of adaptive moving target detection, digital T/R DBF analog to digital integration design, with a stable detection performance, high precision, and low cost,

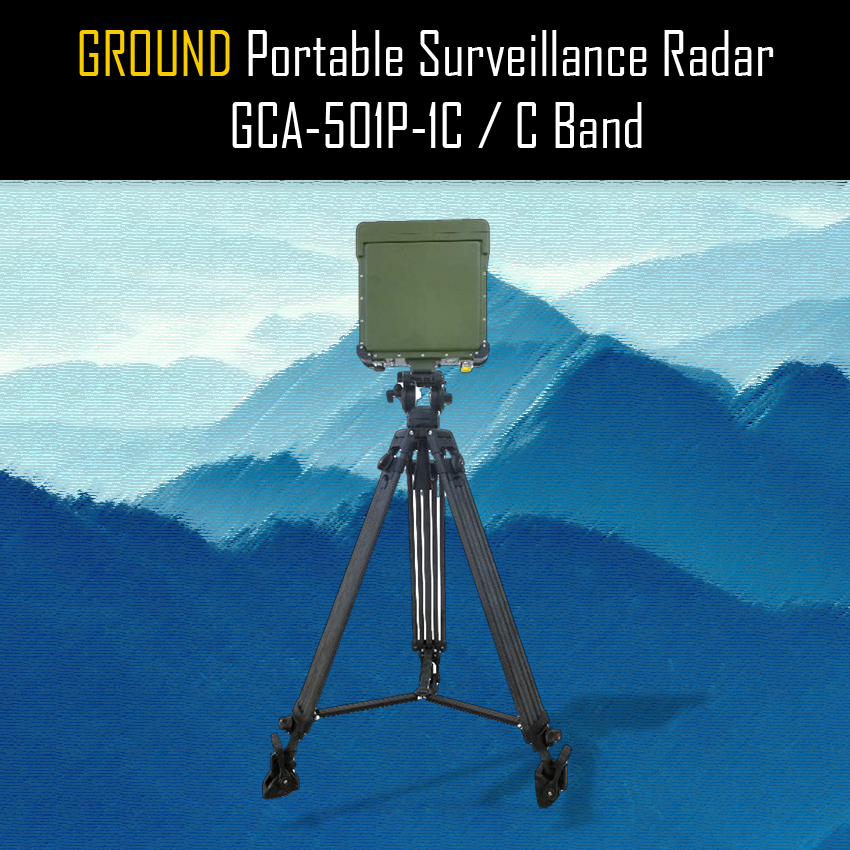

Portable Surveillance Radar
GCA-501P-1C / C Band

It adopts modular design, with simple
structure, convenient installation, no wiring,
simple and fast erection.
The radar outputs target position and
characteristic information to the supporting
display and control system through wireless
transmission module.

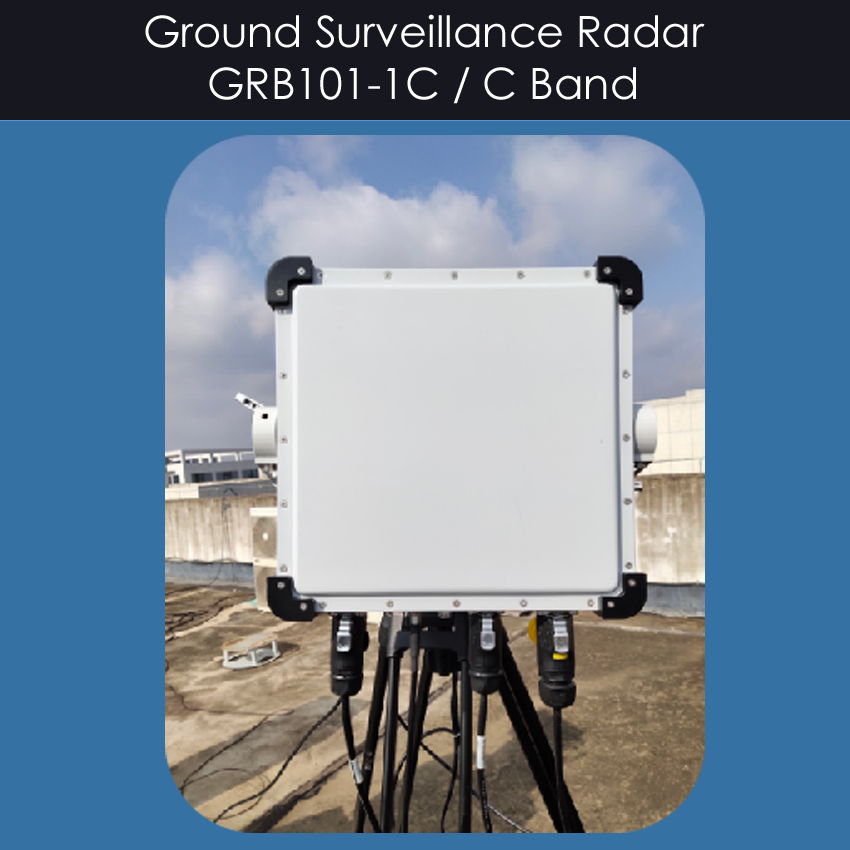

Ground Surveillance Radar
GRB101-1C / C Band

GRB101-1C provides state-of-the-art protection for the airfield and ground, and is a C-band working radar, mainly used to detect and track ground targets, to immediately report the position and coordinate information of targets and quickly make disposal plans for threates
Ground Surveillance Radar

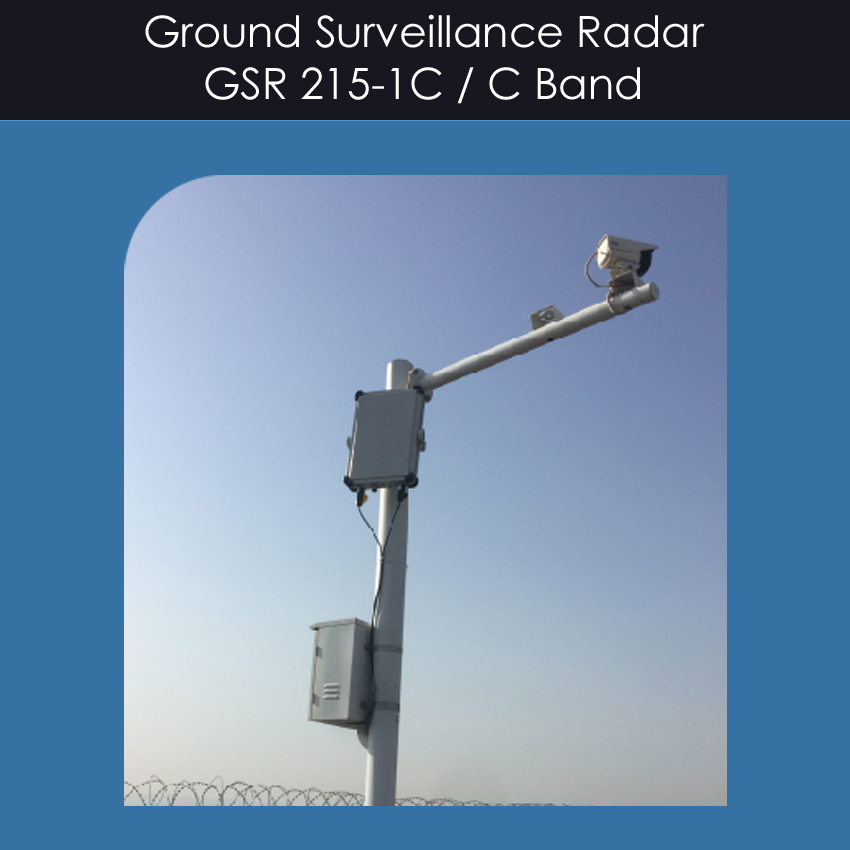

GSR 215-1C / C Band

GSR 215-1C is a phased array radar with advanced technology and stable performance to realize the detection of moving targets on the ground.
View Brochure
Ground Surveillance Radar

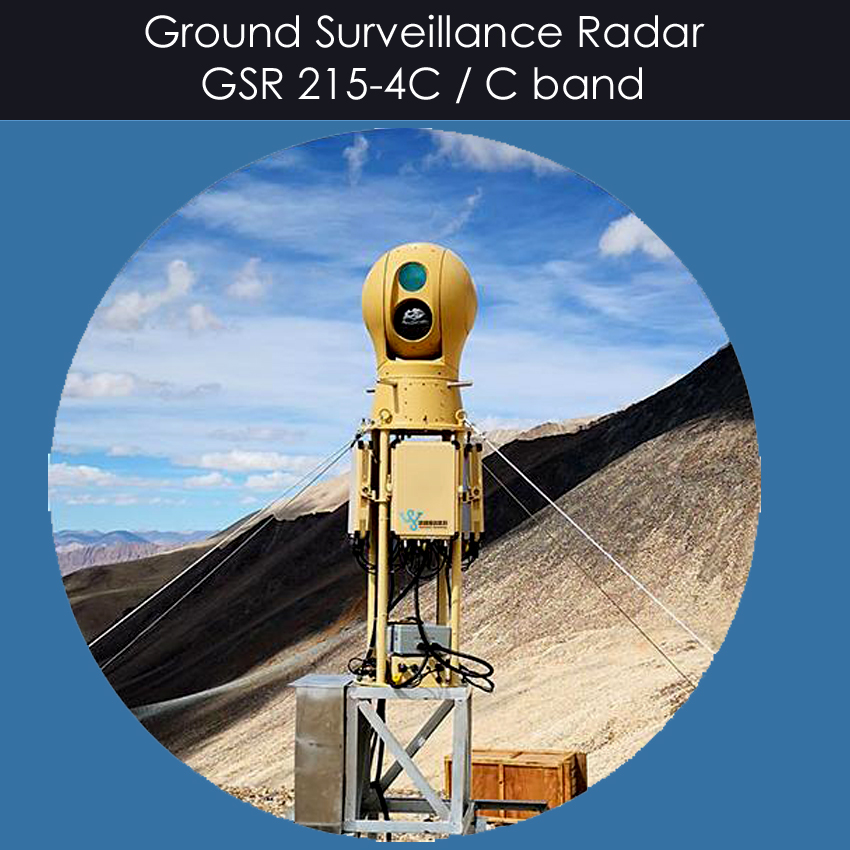

GSR 215-4C / C band

GSR 215-4C is a security surveillance radar, which   is the same type of phased array radar as GSR 215-1C with advanced technology and stable performance developed for the detection of ground moving targets for 360°surveillance.

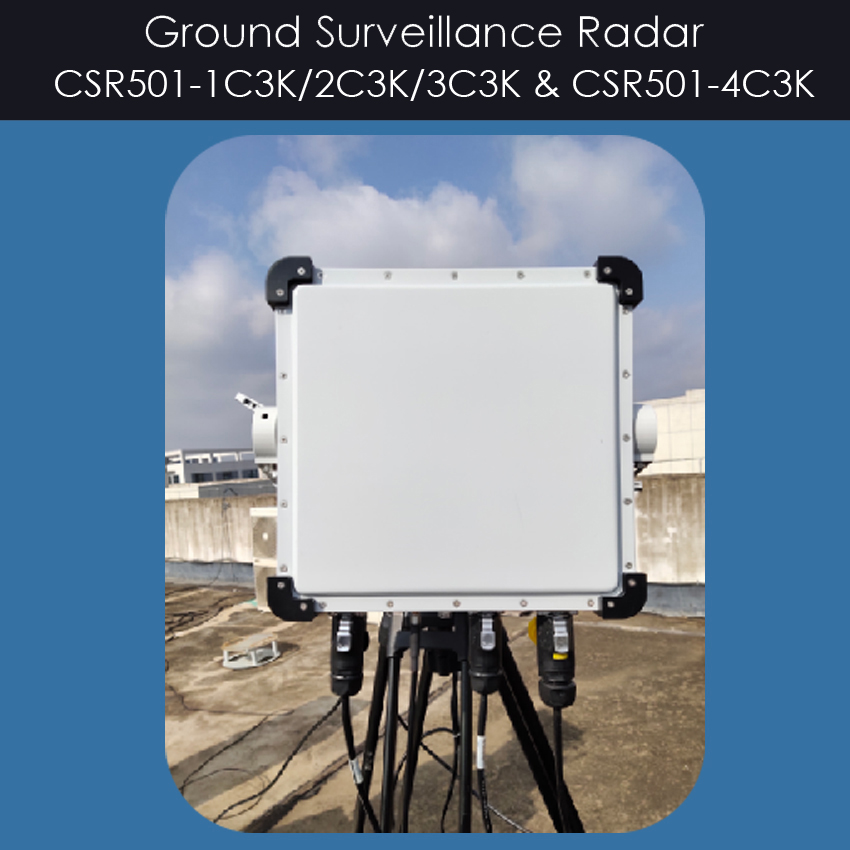

3KM Coastline Surveillance Radar
CSR501

CSR501 series radar works in C-band and adopts fully digital active digital phased array technology.  Through modularization and fine design, it makes comprehensive use of adaptive moving target detection, digital T/R (transmitting/receiving), DBF (digital beam forming), analog and digital integrated design and other technical means.

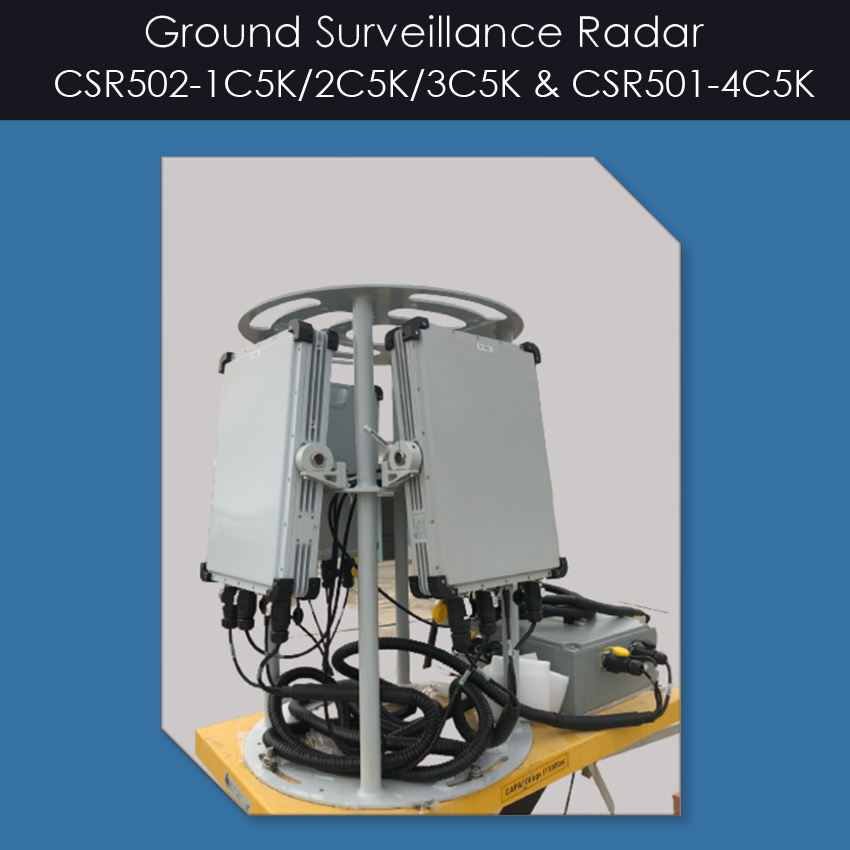

5KM Coastline Surveillance Radar
CSR502

CSR502 series radar works in C-band and adopts fully digital active digital phased array technology. Through modularization and fine design, it makes comprehensive use of adaptive moving target detection, digital T/R (transmitting/receiving), DBF (digital beam forming), analog and digital integrated design and other technical means.

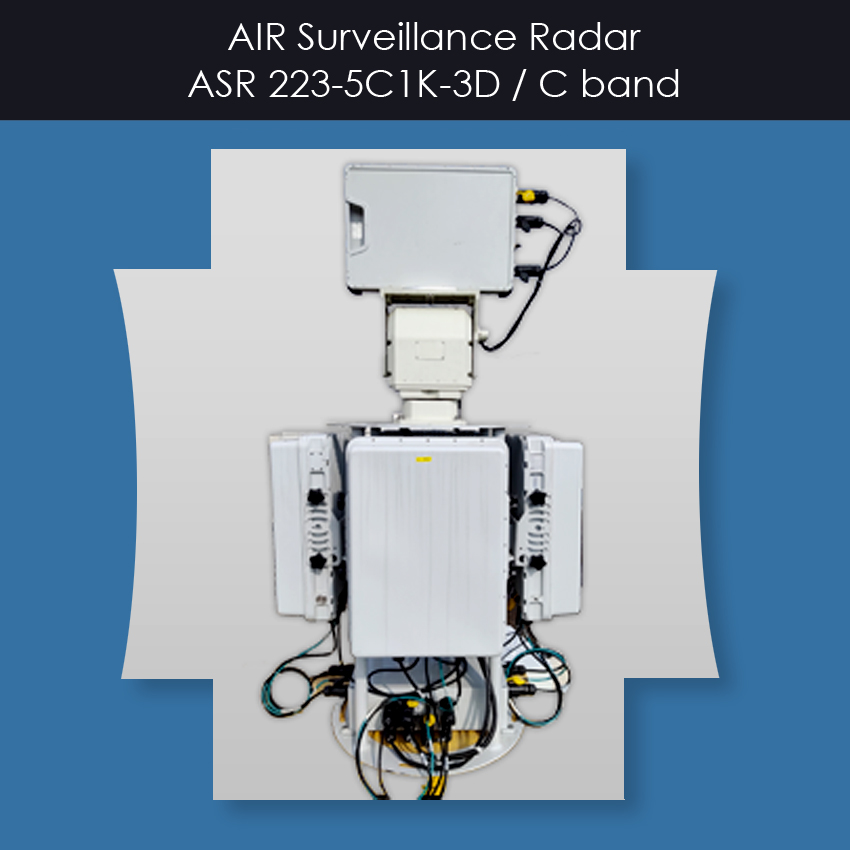

Air Surveillance Radar
ASR 223-5C1K-3D / C Band

ASR 223-5C1K-3D is a security surveillance radar, which is the same type of radar as ASR 223-1C1K which is a phased array radar with advanced technology and stable performance developed for the detection of low flying drones.

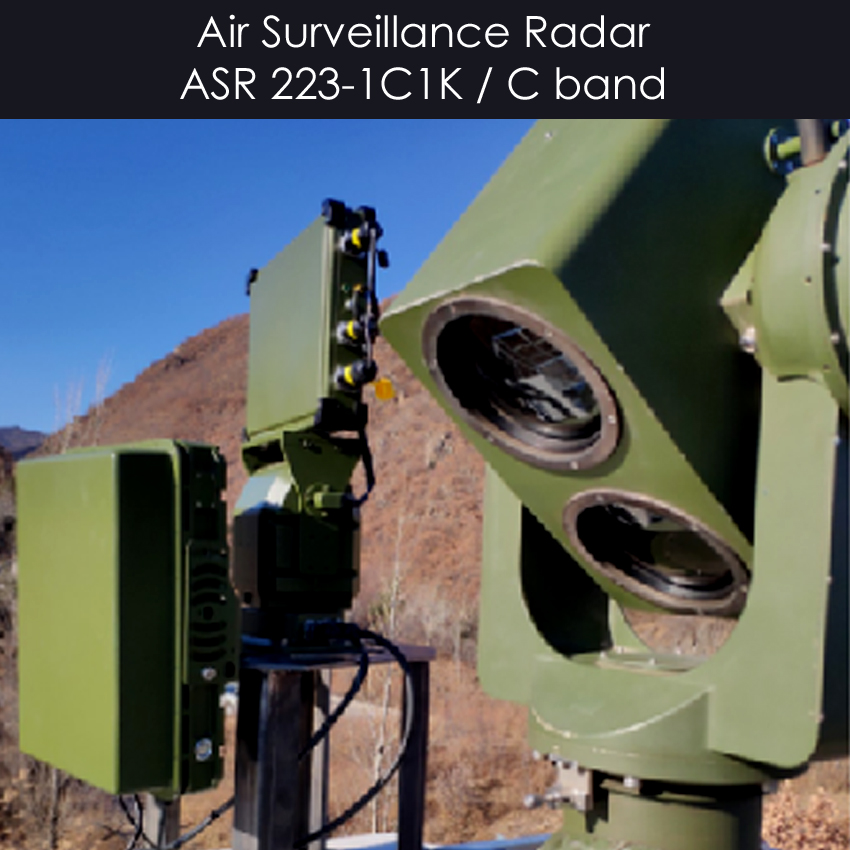

Air Surveillance Radar
ASR 223-1C1K / C band


ASR 223-1C1K, Adopting DBF technology, can directly control the amplitude and phase of each radiation unit through digital means, flexibly generating beams and beam pointing of various shapes.
Air Surveillance Radar

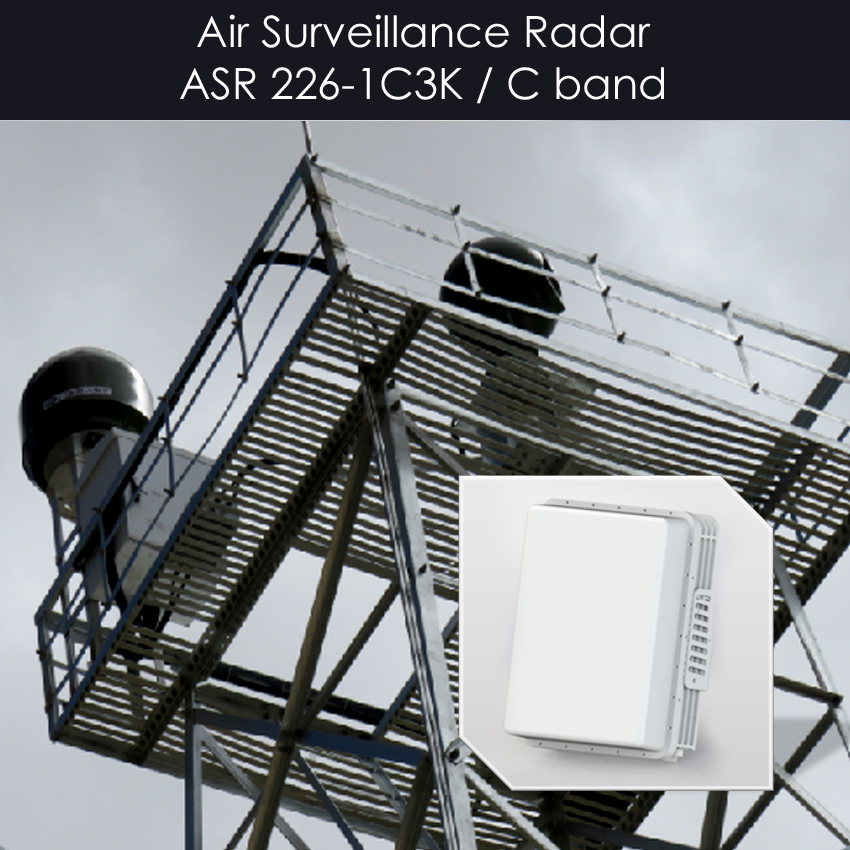

ASR 226-1C3K / C band

ASR 226-1C3K security surveillance radar is mainly used for searching small targets in the air. It has the function of all-airspace search to local airspace search, and can process multiple targets.
Air Surveillance Radar

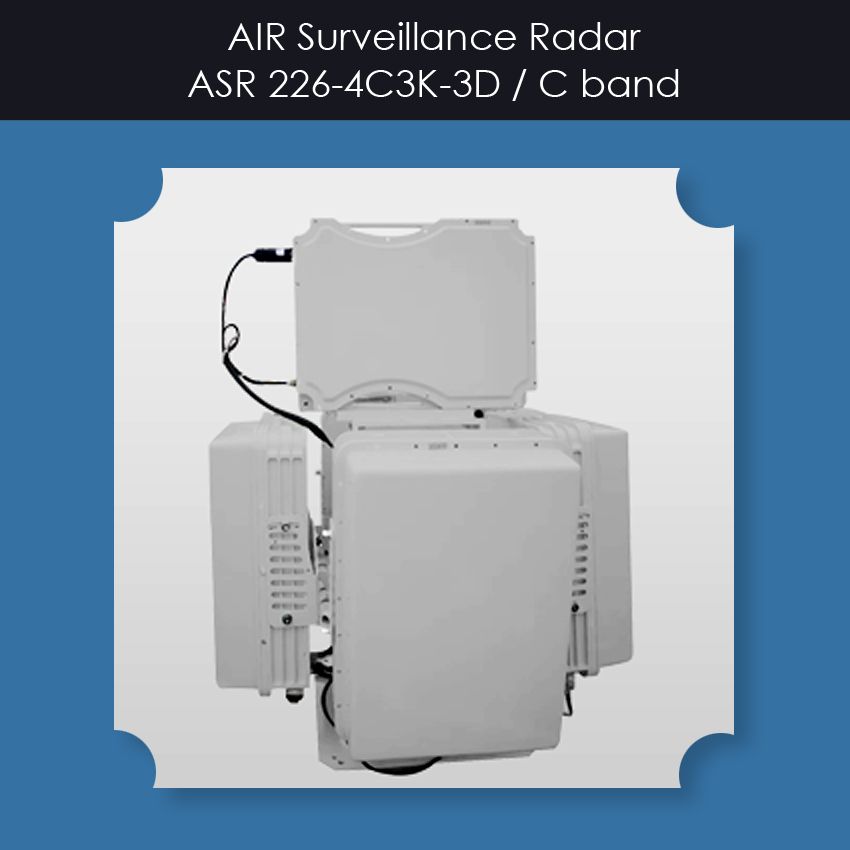

ASR 226-4C3K-3D

ASR 226-4C3K-3D is the same type radar as ASR 226-1C3K, which are also mainly used for searching small targets in the air, and outputs three-coordinate information.
Air Surveillance Radar
A223R-1C1K-3D

A223R-1C1K-3D, C Band Adopting DBF technology, can directly control the amplitude and  phase of each radiation unit through digital means,  flexibly generating beams and beam pointing of  various shapes.
Air Surveillance Radar

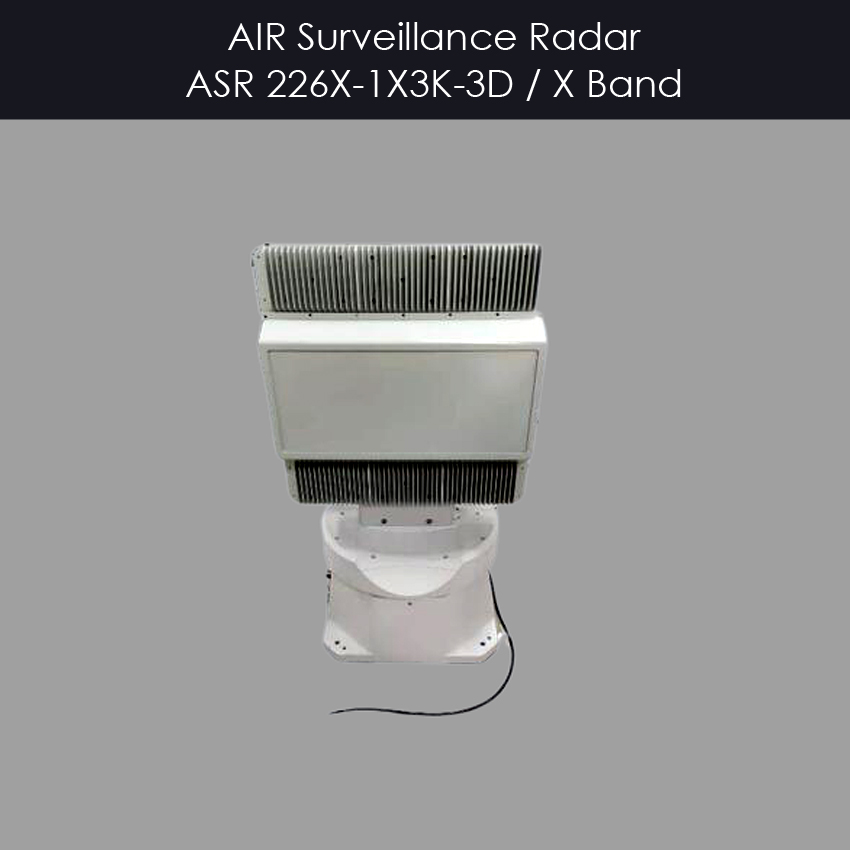

ASR 226X-1X3K-3D / X Band

ASR 226X-1X3K-3D, security surveillance radar is mainly composed of radar array and turntable. It is used for detection, warning and target indication of micro / small civil UAV in key areas such as prison, exhibition and military base. It can accurately give the target's azimuth,  distance, altitude, speed and other track information.
Air Surveillance Radar

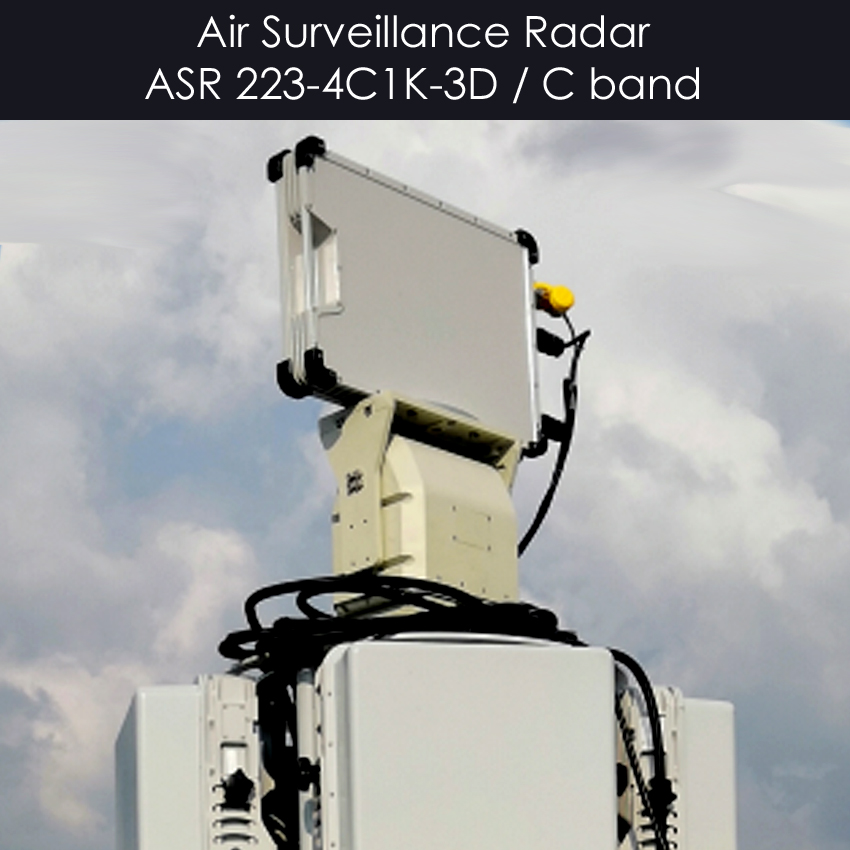

ASR 223-4C1K-3D / C band

ASR 223-4C1K-3D is a security surveillance radar, which is the same type of radar as ASR 223-1C1K  which is a phased array radar with advanced technology and stable performance developed for the detection of low flying drones.
Air Surveillance Radar

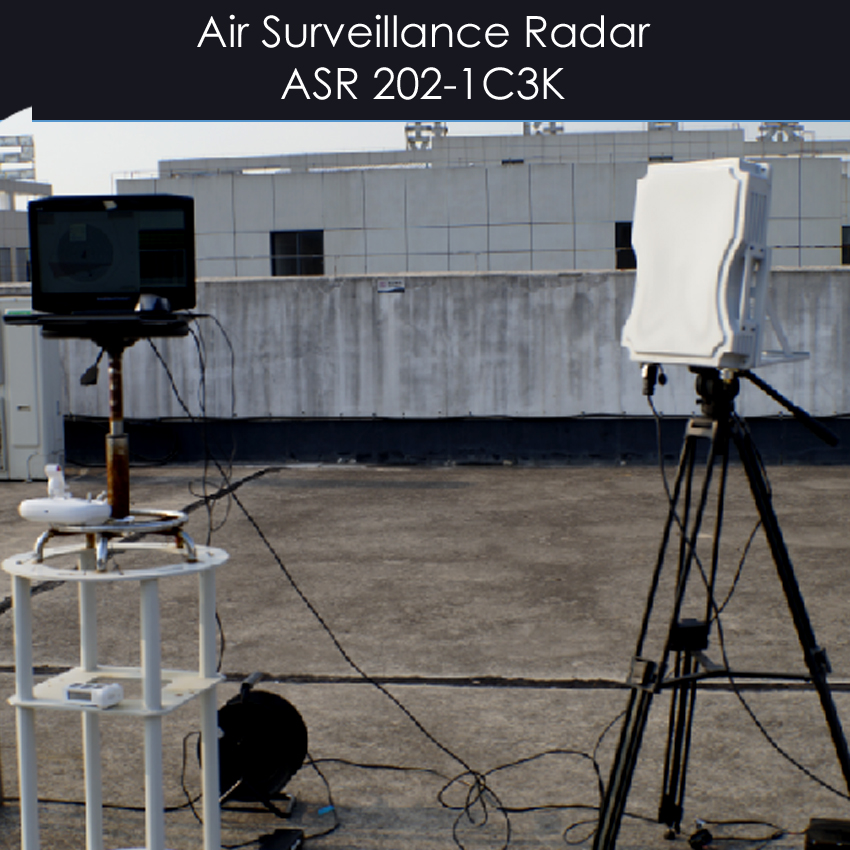

ASR 202-1C3K / C band

ASR 202-1C3K security surveillance radar works in C-band, adopts the all-digital active digital phased array technology system, and runs the radar terminal monitoring software.
Air Surveillance Radar
ASR 223-1X1K / X band

ASR 223-1X1K security surveillance radar is mainly composed of radar array high-speed turntable and distribution control box, which is used for detecting low altitude low small slow targets and pedestrians and vehicles. It can be used for warning and target indication, and can give the track information of targets in real time and accurately.
Air Surveillance Radar

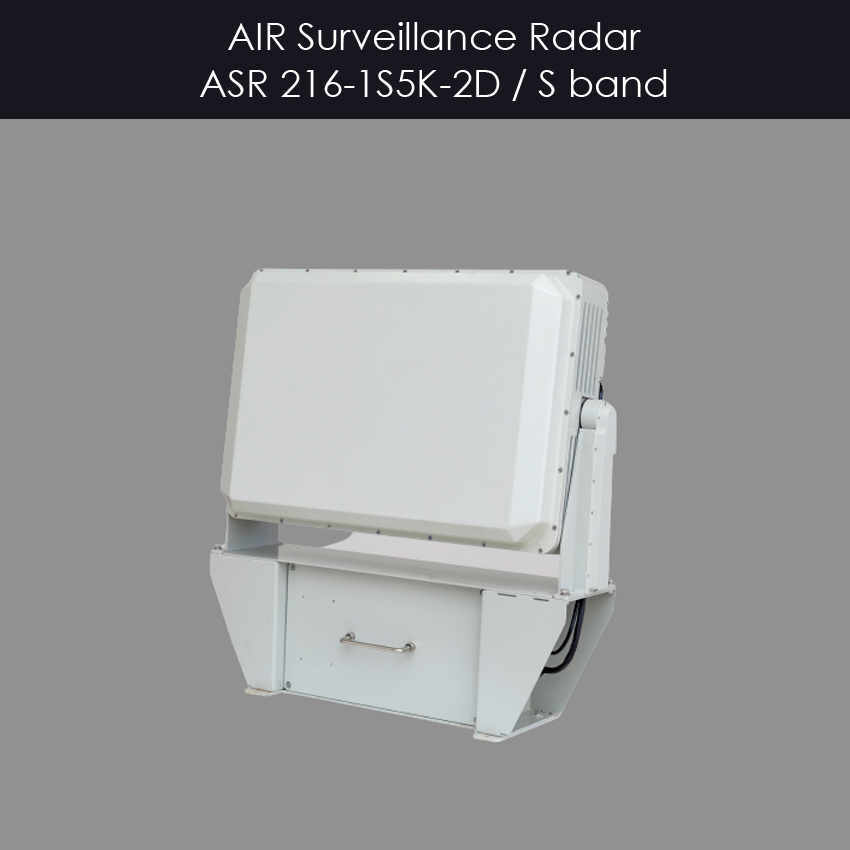

ASR 216-1S5K-2D / S band


Working in S-band, adopting the digital technology of active phased array system, through the modular, fine design, the integrated use of adaptive moving target detection, digital T/R (transmit/receive), DBF (digital beam forming), analog to digital integration design, with a stable detection performance, high precision, and low cost.
Air Surveillance Radar

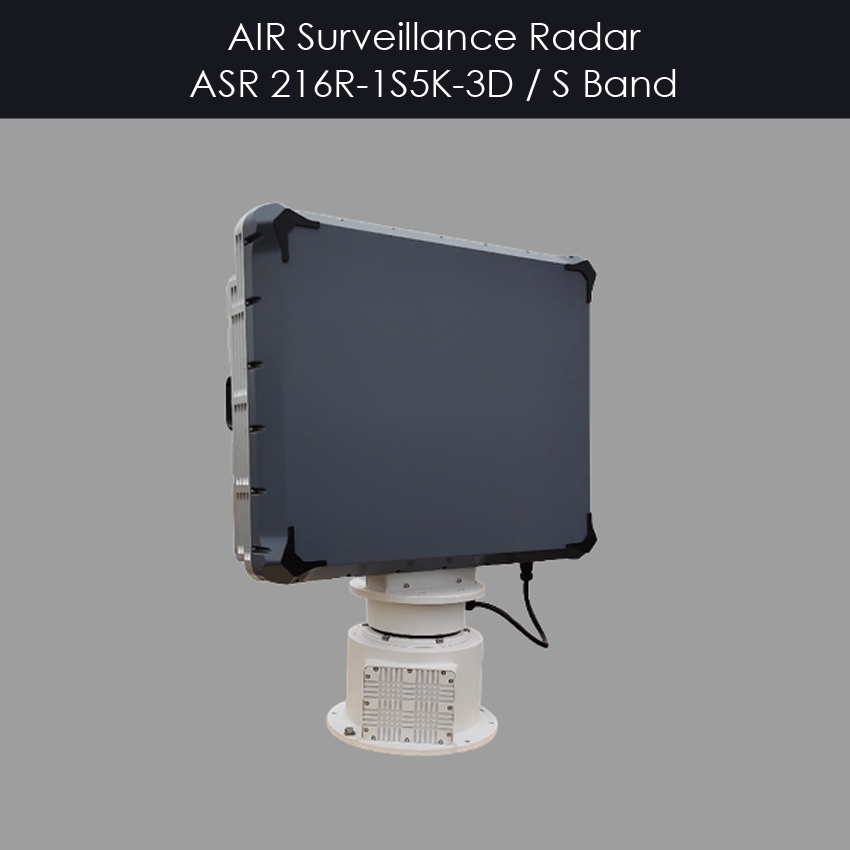

ASR 216R-1S5K-3D / S band


It is working in S-band, adopting the digital technology of active phased array system, through the modular, fine design, the integrated use of adaptive moving target detection, digital T/R (transmit/receive), DBF, analog to digital integration design, with a stable detection performance, high precision, and low cost, is an excellent ground moving target detection radar.
B400 Series Radar
Blighter surveillance products address a broad range of security requirements in the defence, homeland security and civil/commercial markets.

Blighter radars are part of a range of advanced Plextek technologies that provide class-leading protection against both conventional and asymmetric/terrorist threats.

Blighter B400 series radars scan and detect moving vehicles and persons (including 'crawlers') over a wide area and provide exceptional range performance out to 32 km.

Detected targets are reported via wired or wireless TCP/IP network connections, allowing target recognition and identification through the automatic slew-to-cue of optional cameras or thermal imagers.

Accurate positional information is reported, including target lat/long co-ordinates, range and bearing.

The data bandwidth required for target output and radar control is very low.
CONFIGURATION

Electronic-scanning (E-Scan)


The B400 series is Plextek's latest generation of e-scan ground surveillance radars (GSR).

E-scan radars have no moving parts to wear-out, maintain or replace and offer dramatic improvements in reliability.

Blighter radars are all-in-one fully integrated units comprising antennas, signal processing, plot extractor, GPS and compass.

Angular coverage is provided in modular units of 90°.

Blighter radars are proven to withstand harsh environmental conditions and provide many years of maintenance free operation.

The radar operates in all weather conditions and includes a built-in precipitation filter that suppresses false detections from rain or snow.

Day/night 24-hour operation is fully supported.

Low-power FMCW Doppler Technology

Blighter radars incorporate a unique combination of  FMCW and Doppler processing technology, ensuring unsurpassed ground clutter cancellation with the ability to detect incredibly slow movement.

Radio transmission power is very low, making the radar safe for human operation and difficult to intercept  (i.e. electronically covert).

Power consumption is low, allowing operation from battery, vehicle or mains.

Wide Elevation Beam


In order to maximize long-range detection performance, radars are typically mounted high on  a tower or on top of a hill.
However, when mounted in this way, the narrow vertical elevation beam of traditional radars results in the problem of dead ground close to the radar.
Blighter radars benefit from having a very wide vertical elevation beam, allowing them to simultaneously detect targets in  the distance as well as close-up.
In complex mountainous regions, the Blighter radars wide elevation beam also ensures that hill tops and  valleys can be scanned simultaneously, without the need to physically tilt the radar.
Over flat land  and calm water, the wide beam also provides  rapid detection of low flying manned and unmanned aircraft including planes, helicopters, UAVs, microlights and hang gliders.
SPECIFICATIONS

Architectural Overview


- Radar type: E-scan Frequency Modulated Continuous Wave (FMCW) Doppler Ground Surveillance Radar (GSR)
- Frequency band: Ku band
- Scan type: fully electronic scanning in azimuth (‘e-scan’)
- Transmitter power (nominal): 1 Watt (standard-power transmitter version) or 4 Watt (high-power transmitter version)
- Multi-radar operation: supported and unlimited
- Embedded software and firmware: field-upgradeable via network connection

Target Detection Performance

- Maximum detection ranges:
     - Crawling person (RCS 0.1 m2): 4.5 km (2.8 mi.)*
     - Walking person (RCS 1 m2): 10.3 km (6.4 mi.)*
     - Moving vehicle (RCS 30 m2): 16.0 km (9.9 mi.)*
     - Large moving vehicle  (RCS 100 m2): 27.3 km (17.0 mi.)*
     - Large moving vessel (RCS 1,000 m2): 32.0 km (19.9 mi.)*
- Maximum targets per scan: 700
- False Alarm Rate (FAR): 1 false-alarm per day
- Minimum detectable target radial speed: 0.37 km/h (0.23 mph)

* Radar fitted with M10S long-range antenna horns and high-power transmitter

Coverage

- Instrumented maximum range: 5, 8, 16 or 32 km (3.1, 5.0, 9.9 or 19.9 mi.)
- Instrumented minimum range: less than 10 m (33 ft.)
- Azimuth scan angle: 90° (B402), 180° (B422), 270° (B432) or 360° (B442) horizontal e-scan
- Elevation beam: 10° or 20° vertical beamwidth
- Mean scan rate: from 3.3°/s to 90°/s

Target Output & Identification


- Data format: QZ (custom, open-standard data format) or XML over TCP/IP
- Audio modes: Continuous, Grab or Fence
- Range window size (Point or Wide): 20 m or 160 m (66 ft. or 525 ft.)

Connectivity & Software

- Main I/O interfaces (for radar control & target data): 10/100 Ethernet network interface OR optional IEEE 802.11b Wireless LAN)
- Auxiliary I/O interfaces: RS-232 and RS-422 control lines, opto-isolated control/status inputs and isolated switched contact outputs
- Software (SDK): API software library (Windows) and generic Interface Control Document (ICD) are both available to System Integrators


Electrical
-  Battery/regulated-PSU input range: from 12 V to 28 V (DC)
-  Vehicle supply input range:from 12 V to 33 V (DC)
-  Power consumption (from 12 V regulated-PSU)*: 38.4 W (average)
- Endurance*: 10 to 12 hours continuous operation from dual 2590-type batteries

* Standard-power transmitter version only

Physical, Environmental & Reliability


-  External dimensions of radar unit(s)(W x H x D)*: 666 mm x 503 mm x 128 mm (26.2 in. x 19.8 in. x 5.0 in.)
-  Weight of main radar unit*: approximately 25 kg (55 lb.)
-  Weight of auxiliary radar unit(s)*: approximately 21 kg (46 lb.)
-  Operating temperature: from -30° C to +60° C (from -22° F to +140° F)Note: extended operating temperature version available
-  IP rating: IP65 (dust tight and protected against water jets)
-  MIL-HDBK-217-F: 10,000
-  In-service reliability (estimated): in excess of five years

*
Excluding antenna horns, mountings and solar shield
  Errors and omissions excepted.
  Plextek reserves the right to modify specifications without notice.
  Blighter radars are protected by a number of international patents.
The Blighter name is an international registered trademark.
- New Vortex fast-scan technology
- Unsurpassed ground clutter suppression with low false alarm rate
- Long range radar suited to fixed, mobile and portable applications
- Modular scanning from 90° to 360°
- Detects moving vehicles and persons
- Fully electronic scanning (E-Scan) for ultra-high reliability
- Excellent coverage across all types of terrain
