Applications
• With new integrated GNSS module, your tracking experience will be better than ever before.
• Even higher sensitivity, faster than ever cold start and almost instant hot start ensures that your fleet will be tracked precisely
• Small and easy to mount case
• High gain internal GSM antenna and internal GNSS antenna allow mount FMA110 much easier
• Real Time tracking
• Smart data acquisition based on time, distance, angle, speed delta, ignition and I/O events allow to have precise online tracker
• Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
• Smart algorithm of GPRS connections for GPRS traffic saving
• Operating in roaming networks by preferred GSM providers list
• Events from I/O elements detection and sending via GPRS or SMS
• 5 geofence zones (rectangular or circle)
• Auto Geofencing created for car towing detection and car theft prevention
• Deep Sleep mode (less than 6 mA power consumption)
• Firmware and configuration update via GPRS (FOTA)
• 3 operational modes (Home, Roaming, Unknown) based on operator
• Time synchronization by NTP (Network Time Protocol) if GNSS signal is absent
• GSM Anti-jamming detection
• Integrated scenarios:
- Over speeding to secure driver and prevent penalties
- Immobilizer function
- Authorized driving (1-Wire® iButton ID keys up to 50 iButton keys) is used to prevent stealing or driver identification
- GSM Anti-jamming detection
• Trip start and end detection
• CAN data acquisition from any kind of transport such as light vehicles, trucks, buses, agriculture and special transport with Teltonika Vehicle CAN Adapter

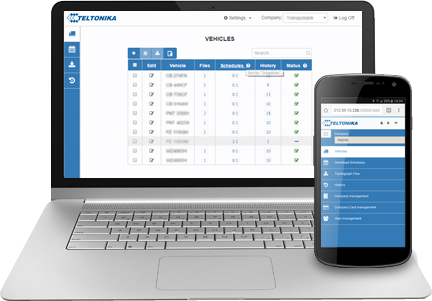

Access and download achograph files of your whole fleet from within a single, web browser-based interface!
• With new integrated GNSS module, your tracking experience will be better than ever before.
• Even higher sensitivity, faster than ever cold start and almost instant hot start ensures that your fleet will be tracked precisely
• Small and easy to mount case
• High gain internal GSM antenna and internal GNSS antenna allow mount FMA110 much easier
• Real Time tracking
• Smart data acquisition based on time, distance, angle, speed delta, ignition and I/O events allow to have precise online tracker
• Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
• Smart algorithm of GPRS connections for GPRS traffic saving
• Operating in roaming networks by preferred GSM providers list
• Events from I/O elements detection and sending via GPRS or SMS
• 5 geofence zones (rectangular or circle)
• Auto Geofencing created for car towing detection and car theft prevention
• Deep Sleep mode (less than 6 mA power consumption)
• Firmware and configuration update via GPRS (FOTA)
• 3 operational modes (Home, Roaming, Unknown) based on operator
• Time synchronization by NTP (Network Time Protocol) if GNSS signal is absent
• GSM Anti-jamming detection
• Integrated scenarios:
- Over speeding to secure driver and prevent penalties
- Immobilizer function
- Authorized driving (1-Wire® iButton ID keys up to 50 iButton keys) is used to prevent stealing or driver identification
- GSM Anti-jamming detection
• Trip start and end detection
• CAN data acquisition from any kind of transport such as light vehicles, trucks, buses, agriculture and special transport with Teltonika Vehicle CAN Adapter
Access and download achograph files of your whole fleet from within a single, web browser-based interface!
FLEET Management
We offer wide range of fleet management products dedicated for professional applications.
We constantly upgrade our existing products and launch new ones to meet expectations of our customers.
If you do not find a product that can meet your requirements, please contact us as might have a solution available.
We constantly upgrade our existing products and launch new ones to meet expectations of our customers.
If you do not find a product that can meet your requirements, please contact us as might have a solution available.
FOR CIVILIAN, MILITARY AND SPECIAL UNITS USE

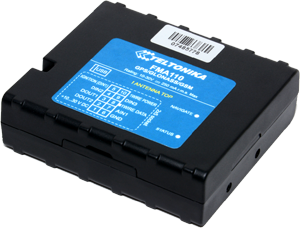

FMA110
Small and professional tracker with internal high gain GNSS and GSM antennas.
New GNSS module
With new integrated GNSS module, Your tracking experience will be better than ever before.
Even higher sensitivity, faster than ever cold start and almost instant hot start ensures that Your fleet will be tracked precisely.
With new integrated GNSS module, Your tracking experience will be better than ever before.
Even higher sensitivity, faster than ever cold start and almost instant hot start ensures that Your fleet will be tracked precisely.
Various vehicle CAN data
With additional Teltonika Vehicle CAN adapter you will be able to acquire CAN data from any kind of transport such as light vehicles, trucks, buses, agriculture transport, and special transport.
Supported vehicles list contains more than 1800 models.
With additional Teltonika Vehicle CAN adapter you will be able to acquire CAN data from any kind of transport such as light vehicles, trucks, buses, agriculture transport, and special transport.
Supported vehicles list contains more than 1800 models.
1-Wire
1-wire protocol support enables you to identify your drivers and connect temperature sensor.
According to iButton® or RFID ID you can prevent unauthorized access to your fleet and temperature sensor allows you to monitor your cargo.
1-wire protocol support enables you to identify your drivers and connect temperature sensor.
According to iButton® or RFID ID you can prevent unauthorized access to your fleet and temperature sensor allows you to monitor your cargo.
Small case
Easy to install, hard to find! Small case, internal GSM and GNSS antennas allow mount tracker much easier.
Dimensions only 65x57x19 mm.
Easy to install, hard to find! Small case, internal GSM and GNSS antennas allow mount tracker much easier.
Dimensions only 65x57x19 mm.
Trip detection
Easy trip start and stop detection gives you possibility to have the report with correct time, location and driven distance for each trip.
Easy trip start and stop detection gives you possibility to have the report with correct time, location and driven distance for each trip.

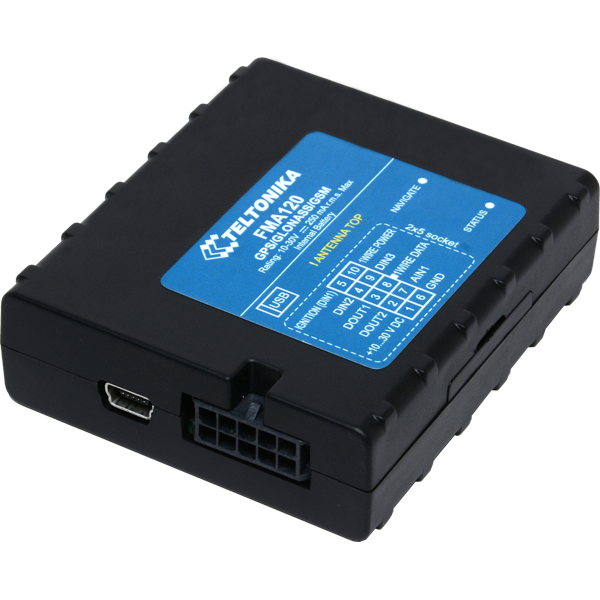

FMA120
Small and professional tracker with internal high gain GNSS and GSM antennas, internal backup battery
New generation GSM/GNSS module
With new integrated GNSS module, Your tracking experience will be better than ever before. Even higher sensitivity, faster than ever cold start and almost instant hot start ensures that Your fleet will be tracked precisely.
With new integrated GNSS module, Your tracking experience will be better than ever before. Even higher sensitivity, faster than ever cold start and almost instant hot start ensures that Your fleet will be tracked precisely.
Various vehicle CAN data
With additional Teltonika Vehicle CAN adapter you will be able to acquire CAN data from any kind of transport such as light vehicles, trucks, buses, agriculture transport, and special transport. Supported vehicles list contains more than 1800 models.
With additional Teltonika Vehicle CAN adapter you will be able to acquire CAN data from any kind of transport such as light vehicles, trucks, buses, agriculture transport, and special transport. Supported vehicles list contains more than 1800 models.
1-Wire
1-Wire® protocol support enables you to identify your drivers and connect temperature sensor. According to iButton® or RFID ID you can prevent unauthorized access to your fleet and temperature sensor allows you to monitor your cargo.
1-Wire® protocol support enables you to identify your drivers and connect temperature sensor. According to iButton® or RFID ID you can prevent unauthorized access to your fleet and temperature sensor allows you to monitor your cargo.
Small case
Easy to install, hard to find! Small case, internal GSM and GNSS antennas allow mount tracker much easier, detect power disconnections with backup battery. Dimensions only 65x57x19 mm.
Easy to install, hard to find! Small case, internal GSM and GNSS antennas allow mount tracker much easier, detect power disconnections with backup battery. Dimensions only 65x57x19 mm.
Trip detection
Easy trip start and stop detection gives you possibility to have the report with correct time, location and driven distance for each trip.
Easy trip start and stop detection gives you possibility to have the report with correct time, location and driven distance for each trip.
SPECIFICATIONS
GSM
- Quad-band 900/1800 MHz; 850/1900 MHz
- GPRS Multi-Slot Class 12(up to 240 kbps)
- GPRS Mobile Station Class B
- SMS (text/data)
GNSS
- Tracking: 33/ 99 acquisition channels
- 165 dBM sensitivity
- Hot start <1s
- Warm Start < 25s
- Cold start < 35s
- NMEA-183 protocol
- GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
- Accuracy < 3m
INTERFACE
- 1 Digital Input Reserved for Ignition Status Monitoring
- 2 Digital Inputs
- 1 Analog Input (10V or 30V range)
- 2 Digital Open-collector Outputs (connecting external relays, LED,
buzzers etc.)
- 1-Wire® temperature sensor
- 1-Wire® iButton
- Motion sensor
- Power supply (+10...+30) V DC
- Internal high gain GSM antenna
- Internal high gain GNSS antenna
- Integrated LiPo back-up battery
- Dimensions: L(65mm)xW(56,6mm)xH(18,9mm)
- 2 Status LEDs
- USB Port
GSM
- Quad-band 900/1800 MHz; 850/1900 MHz
- GPRS Multi-Slot Class 12(up to 240 kbps)
- GPRS Mobile Station Class B
- SMS (text/data)
GNSS
- Tracking: 33/ 99 acquisition channels
- 165 dBM sensitivity
- Hot start <1s
- Warm Start < 25s
- Cold start < 35s
- NMEA-183 protocol
- GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
- Accuracy < 3m
INTERFACE
- 1 Digital Input Reserved for Ignition Status Monitoring
- 2 Digital Inputs
- 1 Analog Input (10V or 30V range)
- 2 Digital Open-collector Outputs (connecting external relays, LED,
buzzers etc.)
- 1-Wire® temperature sensor
- 1-Wire® iButton
- Motion sensor
- Power supply (+10...+30) V DC
- Internal high gain GSM antenna
- Internal high gain GNSS antenna
- Integrated LiPo back-up battery
- Dimensions: L(65mm)xW(56,6mm)xH(18,9mm)
- 2 Status LEDs
- USB Port
LV-CAN200
Light Vehicles Can Adapter
Device collects data of vehicle.. such as speed, kilometers status, Fuel status, RPM etc and sent these in real time to user's terminal

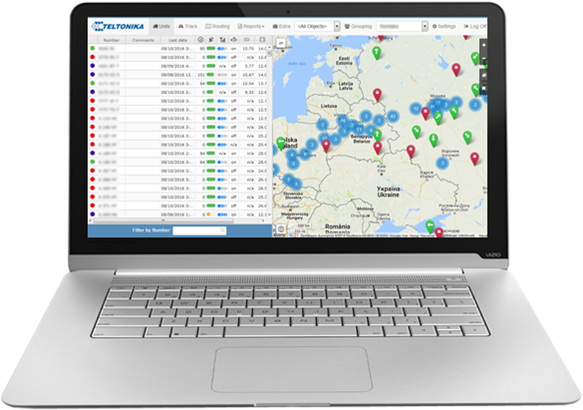

TAVL WEB

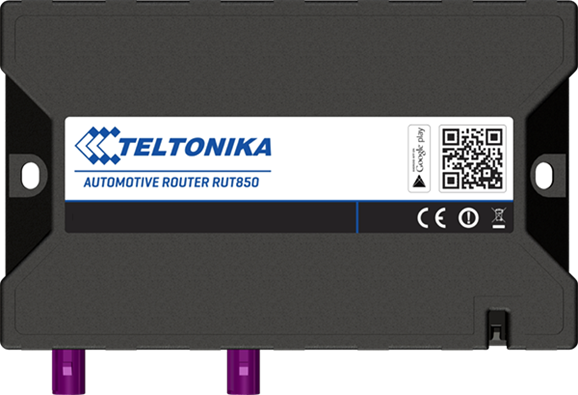

RUT850 is compact slim design LTE wireless router.
Router support latest IEEE802.11n and IEEE802.11b/g WLAN standards and provide wireless receiving and transmitting rate up to 150 Mbps. LTE up to 100 Mbps DL and 50 Mbps UL.
Router support latest IEEE802.11n and IEEE802.11b/g WLAN standards and provide wireless receiving and transmitting rate up to 150 Mbps. LTE up to 100 Mbps DL and 50 Mbps UL.
RUT 850
Manage your routers fleet remotely. With full support of centralized Teltonika Remote Management System you will be able to access, control and monitor all of your routers within a single platform. This will help you make better decisions for future installments and best-use practices.
Set up your internet connectivity and be ready to go in minutes with just a few clicks from your smartphone.
Manage and monitor router's performance without physically connecting to the device.
Manage and monitor router's performance without physically connecting to the device.
RUT850 can be used either in light vehicles or busses, trucks and other heavy transport, which utilizes 24V battery. This is achieved by wide input voltage range (7- 30Vdc) and voltage surge protection – no need for additional surge protection equipment. Power supply socket connector has an Ignition digital input, which controls router's sleep mode status.
Connect multiple devices, watch movies, video streams, or connect to remote surveillance equipment with ease. With support of latest IEEE802.11n and IEEE802.11b/g WLAN standards you can be sure, that full LTE potential can be realized: no bottlenecks from LTE to WiFi
Whether it is a long family trip, a camping spot or a need to access a backend office – RUT850 is a perfect choice. This sleek automotive router supports high speed LTE CAT3, which provides speeds of up to 100Mbps for your leisure or business demands.
LTE
FDD 2100(B1)/1800(B3/850(B5)/2600(B7)/900(B8)/800(B20) MHz
Up to 100 Mbps downlink speed | Up to 50 Mbps uplink speed
All bands with diversity
UMTS
2100(B1)/850(B5)/900(B8) MHz
DC-HSPA+ mode: 42 Mbps downlink speed
DC-HSPA+ mode: 5.76 Mbps uplink speed
UMTS mode: 384 kbps DL, 384 kbps UL
RX diversity antenna
UMTS
2100(B1)/850(B5)/900(B8) MHz
DC-HSPA+ mode: 42 Mbps downlink speed
DC-HSPA+ mode: 5.76 Mbps uplink speed
UMTS mode: 384 kbps DL, 384 kbps UL
RX diversity antenna
GSM/GPRS/EDGE
850/900/1800/1900 MHz
Power Class 4 (33dBm ±2dB) for GSM 850/900MHz
Power Class 1 (30dBm ±2dB) for GSM 1800/1900MHz
Power Class E2 (27dBm ±3dB) for EDGE 850/900MHz
Power Class E2 (26dBm +3/-4dB) for EDGE 1800/1900MHz
GPRS: 85.6 kbps DL, 85.6 kbps UL
EDGE: 236.8 kbps DL, 236.8 kbps UL
ELECTRICAL, MECHANICAL & ENVIRONMENTAL
Dimensions (H x W x D) 131 mm x 79 mm x 17 mm / Weight 106 g
Input voltage range 7 – 30 VDC / Power consumption < 5 W
Operating temperature -40 °C to 75 °C
Storage temperature -45 °C to 80 °C
Operating humidity 10 % to 90 % non-condensing
Storage humidity 5 % to 95 % non-condensing
WiFi
IEEE 802.11b/g/n WiFi standards
AP and STA modes
64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
2.401 – 2.495 GHz WiFi frequency range
20dBm max WiFi TX power
SSID stealth mode and access control based on MAC address
FDD 2100(B1)/1800(B3/850(B5)/2600(B7)/900(B8)/800(B20) MHz
Up to 100 Mbps downlink speed | Up to 50 Mbps uplink speed
All bands with diversity
UMTS
2100(B1)/850(B5)/900(B8) MHz
DC-HSPA+ mode: 42 Mbps downlink speed
DC-HSPA+ mode: 5.76 Mbps uplink speed
UMTS mode: 384 kbps DL, 384 kbps UL
RX diversity antenna
UMTS
2100(B1)/850(B5)/900(B8) MHz
DC-HSPA+ mode: 42 Mbps downlink speed
DC-HSPA+ mode: 5.76 Mbps uplink speed
UMTS mode: 384 kbps DL, 384 kbps UL
RX diversity antenna
GSM/GPRS/EDGE
850/900/1800/1900 MHz
Power Class 4 (33dBm ±2dB) for GSM 850/900MHz
Power Class 1 (30dBm ±2dB) for GSM 1800/1900MHz
Power Class E2 (27dBm ±3dB) for EDGE 850/900MHz
Power Class E2 (26dBm +3/-4dB) for EDGE 1800/1900MHz
GPRS: 85.6 kbps DL, 85.6 kbps UL
EDGE: 236.8 kbps DL, 236.8 kbps UL
ELECTRICAL, MECHANICAL & ENVIRONMENTAL
Dimensions (H x W x D) 131 mm x 79 mm x 17 mm / Weight 106 g
Input voltage range 7 – 30 VDC / Power consumption < 5 W
Operating temperature -40 °C to 75 °C
Storage temperature -45 °C to 80 °C
Operating humidity 10 % to 90 % non-condensing
Storage humidity 5 % to 95 % non-condensing
WiFi
IEEE 802.11b/g/n WiFi standards
AP and STA modes
64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
2.401 – 2.495 GHz WiFi frequency range
20dBm max WiFi TX power
SSID stealth mode and access control based on MAC address
HARDAWARE
- LTE
- WiFi
- 7 to 30 VDC
- Internal WiFi antenna
- Input for Ignition
- SIM card drawer
- LTE
- WiFi
- 7 to 30 VDC
- Internal WiFi antenna
- Input for Ignition
- SIM card drawer
SOFTWARE
- Dynamic DNS
- Periodic reboot
- SMS Control / Gateway
- Mobile on Demand
- Hotspot
- Mobile Quota Control
- Backup WAN
- NTP
- Ping Reboot
- Web Filter
- Sleep Mode
- Dynamic DNS
- Periodic reboot
- SMS Control / Gateway
- Mobile on Demand
- Hotspot
- Mobile Quota Control
- Backup WAN
- NTP
- Ping Reboot
- Web Filter
- Sleep Mode
Teltonika TAVL WEB Solution is fast and easy way to monitor and track Your fleet. Solution is easily manageable and does not require any software installation. Everything is accessible via a web page.
With TAVL WEB you will be able to optimize your fleet, decrease vehicle maintenance cost and improve overall fleet performance.
Monitoring
Monitor newest information about objects position, date and time, speed, vehicles ignition state, battery power etc.
Web access
Monitoring of your whole fleet from within a single, web browser-based interface
Reports
The most important reports to handle your fleet efficiently (Driven distance, Trip stops, Fuel tank, work time, etc.).
With TAVL WEB you will be able to optimize your fleet, decrease vehicle maintenance cost and improve overall fleet performance.
Monitoring
Monitor newest information about objects position, date and time, speed, vehicles ignition state, battery power etc.
Web access
Monitoring of your whole fleet from within a single, web browser-based interface
Reports
The most important reports to handle your fleet efficiently (Driven distance, Trip stops, Fuel tank, work time, etc.).
