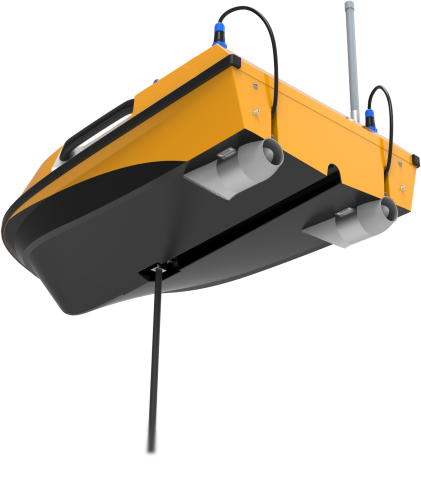

Remote controlled water sampling boat SS20Y
The USV can collect 10L water samples from one spot 0.5m under the water’s surface
   Request for Quotation
Carbon Fiber
14kg
10kg
Waterjet propeller
Radio Frequency
2 km
2 km (2.4G wireless Ethernet as option telemetry range 2km @ 2Mbps)
2-5knots(1-2.5m/s)
10 knots (5m/s)
2 hours@2.5m/s
1x33V 40Ah
Quick Battery Replacement
*Higher capacity battery pack as an option

Real time video monitoring
ADCP telemety module
Specifications

Hull Material
Weight(excl.ADCP)
Payload
Motor
Remote Control
Remote Control Range
Data Telemetry Range
Survey Speed
Top Speed
Battery Endurance
Battery Pack



Option
TOP 100 INNOVATORS
MTR 2018
ROHS CERTIFIED
IEC CERTIFIED
FCC CERTIFIED
CE CERTIFIED
QMS CERTIFIED
ISO 9001 CERTIFIED
INTERNATIONAL STANDARDS CERTIFIED
Compact and portable

This USV only weighs 15kg and is 105cm long, so it can be carried by one person and transported in the trunk of a car.

Flexible operation with remote controller

The USV is operated by remote controller so that the operator can enjoy higher levels of flexibility and safety in harsh working environments..
High speed & tangle free

The innovative propeller system allows the USV to sail at a speed up to 5m/s and to avoid being entangled with water plants and rubbish.
