TECHNICAL SPECIFICATIONS

Control range LOS

- In urban areas, m: 2000
- In open areas, m: 5000

Video transmission range:

- In urban areas, m: 700
- In open areas, m: 3000

Speed across rough terrain on electric power, km/h: +5
Complex run time on electric power, h: up to 16
Viewing field of driver, m: 200
Targeting range, m: 10000
Armament: 2  x Four-barreled aviation machine gun GSHG - 7.62

Rotation range of the reconnaissance-firing platform:

- Elevation, degrees: -4...+70
- Azimuth, degrees: 360

Guidance accuracy in both axes, mrad: 2
Guidance angles measurement accuracy, mrad: 0.5

Aiming (tracking) speed:

- Horizontal, degrees: 60
- horizontal, degrees: 25

Accuracy of automatic tracking in both axes relative to the target, mrad: 10
Operating temperature range, °С: 30...+55
The Berserk is armed with a twin four-barreled GSHG 7.62 machine gun with a rate of fire of up to 6000 rounds per minute and can hit small-sized unmanned aerial vehicles at a distance of 1000 meters.

Modern optical system installed on the Berserk incorporates a thermal imaging unit and is capable of detecting small-sized drones at a distance of up to 3 km, and helicopters - up to 10 km. The software based on neural network technologies allows the machine to automatically capture the target and identify it by type (The operator-driver observation system is developed based on the Puma Driver-Sofia.)

The robotized weapon complex is equipped with a hybrid power unit - a diesel engine and an electric generator.

The stability of the complex when firing is provided by a universal tracked platform that evenly distributes the weight of the machine over the ground surface, thereby eliminating rocking when firing and significantly increasing cross-country ability. «Berserk» confidently moves on all types of soil (sand, gravel, wetlands), overcomes steep ascents and descents.

Thanks to the independent hub drives, the machine is able to move the tracks in different directions and turn around on the spot.

For the transmission of telemetry and high-definition video, the complex is equipped with a powerful noise-proof radio transmitter. At the same time, the radius of the sustainable drone control is about 1 km in dense urban areas, and over 5 km in open areas. If necessary, the combat control radius can be increased with the help of a repeater mounted on a quadrocopter.

At the request of the customer, «Berserk» can be equipped with any optical-electronic equipment and weapons.

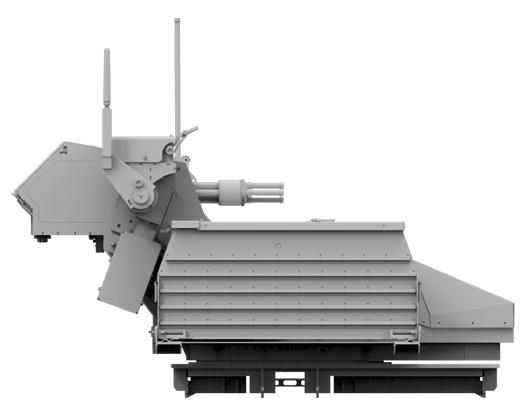

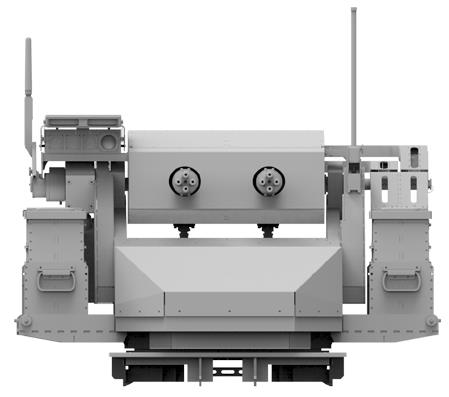

"BERSERK" UNMANNED GROUND VEHICLE
FIXED SITE TARGET
RFS
"BERSERK"

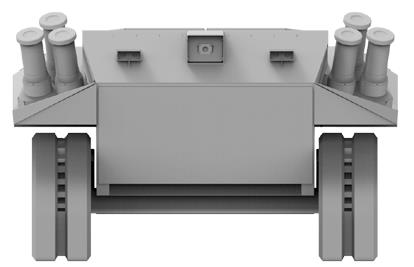

LIGHTLY ARMORED VEHICLE (LAV) "ASILAK" ARS-6
The BERSERK unmanned ground vehicle (UGV) is designed for remote monitoring of theground and air situation, for detecting and engaging unmanned aerial vehicles (low-flyinghelicopters), light armoured and soft-skinned vehicles, as well as enemy personnel.

The BERSERK combat UGV consists of a remote-controlled robotic vehicle, which includes a reconnaissance-firing rotating platform and a mobile platform on a tracked chassis, and a remote control station designed as a portable control panel, as well as equipment for receiving and transmitting data.
The reconnaissance-firing rotating platform consists of:

- Rotating platform;
- Thermal imaging module;
-TV module;
- Module for video data processing and platform control.
The mobile platform consists of:

- Tracked chassis;
- Power supply system;
- TV surveillance module;
- Positioning and control module.
Gross weight, kg: 2200
Dimensions: height/ width/ length, m: 1.43/1.4/2.5
Ground pressure, kg/cm2: 0.37
Track width, m: 1.1
Ground clearance, mm: 180
Approach and departure angles, deg¨35
Power train: Hybrid
Battery-powered operation time in standby mode, hrs: 24
Maximum speed, km/h: 5
Range, km: 30
The BERSERK UGV is armed with a pair of GShG-7.62 four-barrelled machine guns and can engage small-sized unmanned aerial vehicles (low-flying helicopters) and light armoured vehicles.

The UGV ensures a high accuracy of fire.

When firing from a distance of 400 metres, 90 out of 100 bullets hit a circle with a diameter of 50 centimeters.

Thanks to the elements of artificial intelligence (neural network interfaces) the UGV is able to independently identify low-contrast, masked or unclearly visible targets.

Armament:

2 x GShG-7,62, pcs
Rate of fire, rds/min: 6000 each
Ammunition, rds: 2 x 1500
Maximum range of fire, m: 1000
Effective range of fire, m: 300 - 500
OPTICS
Satellite positioning system: GPS/GLONAS
Positioning accuracy, m: ±5
Azimuth accuracy, deg: ±1,0
Roll and pitch accuracy, deg: ±0.5

Focal length, mm

Thermal imaging module: 90
TV module: 75
TV surveillance module: 25

Matrix resolution, pixels

Thermal imaging module: 640х480
TV module: 1600х1200
TV surveillance module: 2330х1750

Frame frequency, Hz

Thermal imaging module: 30
TV module: 30
TV surveillance module: 30

Range finding module (optional)

Beam width, mrad: 0,4х0,7
Range accuracy, m: ± 1,5
Measurement frequency, Hz: 1
Measuring range, m: up to 3000
LIGHTLY ARMORED VEHICLE (LAV) "ASILAK" ARS-6
ROBOTIC COMPLEX / COMBAT MODULE
BERSERK Multipurpose Support System
Berserk robotic complex fulfils the tasks of optical reconnaissance, fire cover and defense of important stationary objects, air defense positions, and artillery sites, and fire support for ground assault groups.

Combat ready complex can quickly and efficiently destroy unexpectedly appeared UAVs, as well as firing points and enemy troops.

Most often, it is required in transient combat clashes with paramilitary forces or small, but heavily armed, dispersed groups, i.e. during counterinsurgency and counter-terrorism actions.

It is designed for:

• destruction of UAVs while organizing defense of important strategic stationary objects (nuclear power plants, airfields, etc.), air defense positions, artillery sites;
• fire support of ground assault groups;
• destruction of lightly armored and automotive vehicles;
• ground and airspace reconnaissance.

Specifications

Operating temperature range: -35°С...+55°С
Control range LOS: 5000 m
Armament: 2 x GShG-7,62
Rate of fire: 6000 rounds per min per barrel
Speed: 5 km/h
Power reserve:30 km
Passive mode operating time: 24h
Ensuring long-range observation and accurate target capture is one of the requirements that are presented today to various types of combat modules.

That is why the cutting-edge multichannel day/night sights and optoelectronic stations (OES) are actively introduced into their composition, capable of operating in the most adverse and extreme weather conditions
2хGShG-7,62 (9-А-622MB) are able to fight effectively against unmanned aerial vehicles and enemy troops at middle and long range
Optical-electronic station “Chizh” provides detection, recognition and tracking of the target day and night in any weather
Rotating platform allows you to direct weapons quickly and accurately to the identified target
Optical-electronic station “Chizh” based on the multispectral optical-electronic station that allows reconnaissance of airspace around the clock, as well as automatic detection and tracking of targets with the determination of their exact position and calculate the lead pointfor firing.

The digital computer calculates the lead point depending on the type of target, its distance and velocity vector, taking into account ballistic calculations.
OES “Chizh”
Armament
Equipped with two aircraft machine-guns GShG-7,62
Characteristic GShG-7,62

Machine gun weight - 18,5-19 kg

Round- 7,62 х 54mm R with steel core light bullet, Т-46, B-32 and brass cartridge case

Rate of fire - 400 up to 6000 rounds per minute

Barrel life - 40 000 rounds

Shooting range

Maximum shooting range - 1000 m

Effective shooting range - 300-600 m

Allowance of ammunition - 2 х 1500 rounds

Barrel velocity - 875 m/s
Rotating platform
The rotating platform uses powerful electric drives that allow you to rotate the combat module 360 degrees in just 6 seconds.

This speed is necessary for a quick response to rapidly changing air environment.

The ruggedness of the structural elements of the rotating platform allows it to withstand the relatively high recoil of the coaxial four-barrels machine guns.
Rotation range of the reconnaissance-firing platform:
- Elevation, degrees: -4...+70
- Azimuth, degrees: 360

Guidance accuracy in both axes, mrad: 2
Guidance angles measurement accuracy, mrad: 0.5

Aiming (tracking) speed:
- Horizontal, degrees: 60
- horizontal, degrees: 25

Accuracy of automatic tracking in both axes relative to the target, mrad: 10
Operating temperature range, °С: 30...+55
The universal seat allows you to install the combat module stationary and on various types of vehicles. At the same time, it can function both in automatic and in remotely controlled modes.
Optical-electronic station "Chizh", installed on the combat module, can also be used to monitor the terrain while transmitting all intelligence information to the command post.
The mobile platform consists of:

- tracked chassis;
- power supply system;
- TV surveillance module;
- positioning and control module.

The chassis provides maneuverability of a robotic platform on both plane surface and rough terrain. Independent tracks control provides the ability to turn round on the spot reducing the turning radius to zero. The possibility of using different configurations of the tracks allows the complex to increase cross-country ability in specific climatic conditions.

The Berserk is controlled remotely. The control panel, which configuration can be changed on request, is used to control the complex remotely.

Command acquisition and transmission range:

- in open areas, km: 5
- on rough terrain, km 1

Video transmission range:

- in open areas, km: 3
- on rough terrain, km: 0.7

Cross Country Speed: >5 km/h

Stand-by operating time:

• using batteries: 24h
• using gasoline generator: 72h

Power reserve using gasoline generator: 30Km
Modern optical system installed on the robotic complex as a guidance device allows it to detect air and ground targets in a wide field of view in passive mode around the clock.

Advanced software automatically acquires a target, identifies it by its type and transfers full coordinates to the control panel. It has the ability to work in automatic mode in a given sector of responsibility for specified target types.

The system has a built-in ballistic calculator and target leading system for the target destruction.
OPTICS
Coverage range of optical motion capture systems

- television channel: 200m
- thermal imaging channel: 200m
- television channel (rear camera): 20m

Optical homing system

Television channel receiver resolution: 1600х1200
Thermal imaging channel receiver resolution: 640х480
Narrow field of view: 12°x9°
Wide field of view: 16°x27°
Frame rate: 30 Hz
Power supply: 9-32 V
Power consumption: 120 W
Operating temperature range: 40°С..+50°С
Homing system
Operator-driver observation system
200
400
1200
250
1400
450
Twin aircraft machine guns GShG-7.62 allow:

- to destroy UAVs while organizing defense of important strategic stationary objects (nuclear power plants, airfields, etc.), air defense positions, artillery sites;
- to destroy low flying helicopters;
- to destroy lightly armored and automotive vehicles;
- to hit enemy troops both in open space and in light type shelters;
- fire support of ground assault groups.

Calculation of drone assured destruction

Initial data:
Target Type - Drone
Distance to the goal - 200 m
Destruction time - 1.5 seconds.
Kill probability - 95%
ARMAMENT


200mm
Range of defeat
1000
  • "BERSERK"  UNMANNED GROUND VEHICLE
Low flying targets destruction
Optical reconnaissance
Noiselessness and low visibility
Light armored and automotive vehicles destruction

Detection range, m
70
150
440
200
400
1200
3300
1100
550
Identification (on the STANAG 4347)/ recognition/ detection
2 500 mm
1 400 mm
WEIGHT
2 200 Kg
